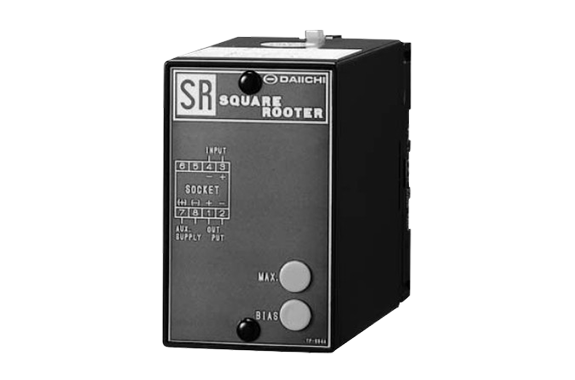

Manufacturer: Daiichi Electronics Co., Ltd.
Model: SRTP1-C5F5

Features

• Constant voltage and constant current output.
• Withstand voltage: 1,500 V AC (50/60 Hz) for 1 minute between the entire circuit and enclosure, and between input/output and auxiliary power.
  Also, 1,500 V AC (50/60 Hz) for 1 minute between input and output.
• Output below approximately 10% is clamped to 0% output.
• Differential input is not supported.
• Impulse withstand voltage: 5 kV, 1.2/50 μs, positive and negative polarity, guaranteed for three iterations (between circuit and enclosure).

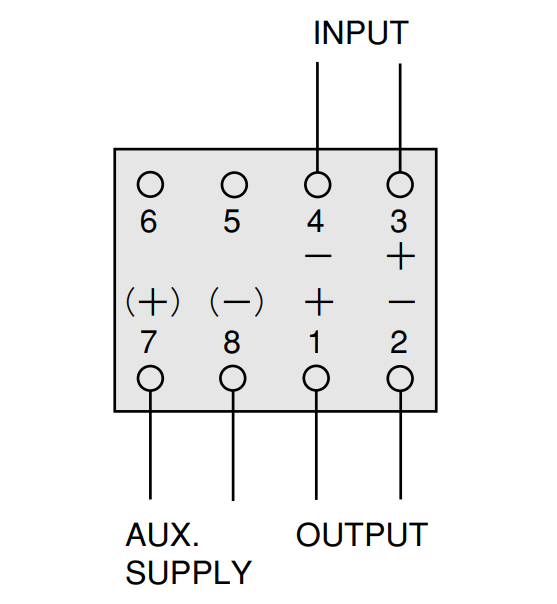

Wiring Diagram
