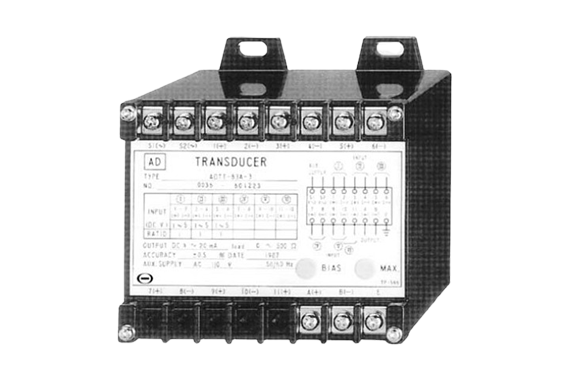

Daiichi Electronics Summing Transducer ADTT-83A / ADTT2-83A
Manufacturer: Daiichi Electronics Co., Ltd.
Model: ADTT-83A / ADTT2-83A
Features
- Multiple DC signals (max 6 circuits) are added according to a specified ratio to convert them into the required DC signal.

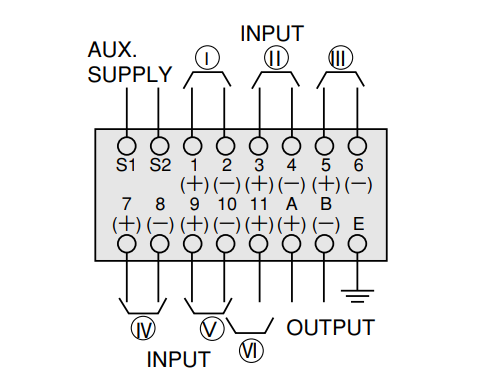

Wiring Diagram
Note: If the auxiliary power supply is DC, connect S1 as (+) and S2 as (−).
