Manufacturer: Daiichi Electronics Co., Ltd.

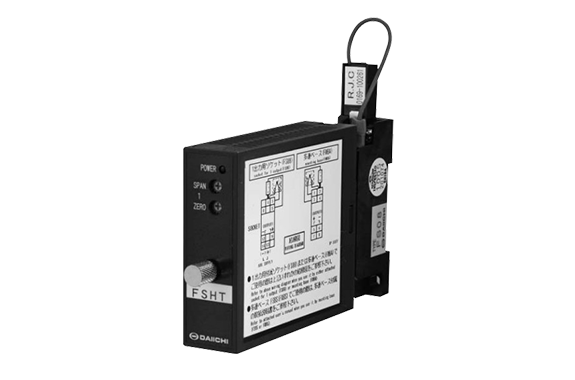

Model: FSHT

Features

• Compact size with high withstand voltage design.
• Isolation voltage between input, output, auxiliary power, and case: AC 2,000 V (50/60 Hz) for 1 minute, fully isolated.
• This is a constant voltage/current output type, so no adjustment is needed when used within the rated load resistance range.
• Power ON status can be confirmed via LED.
• Zero/Span adjustments are possible: (±2% adjustable)
• Burnout function can be specified as either Positive or Negative Burnout.

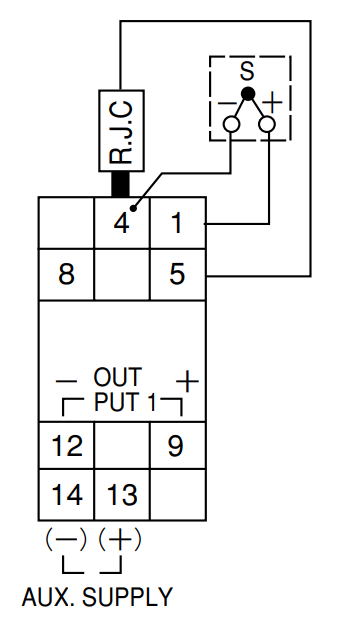

Wiring Diagram
