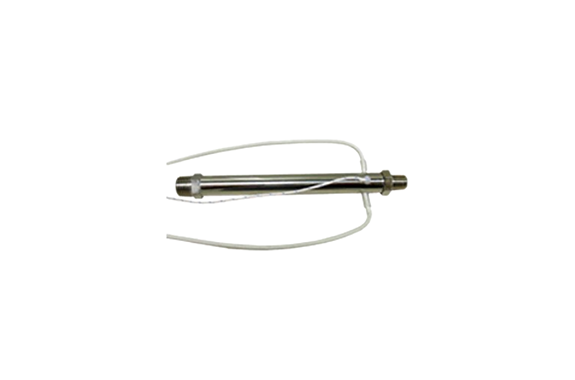

Daikoken Heat FAS Series Compact Heater
Manufacturer: Daikoken Heat Co., Ltd.
Model: FAS Series
Features
- Can operate steadily at high temperatures up to 800°C.
- Due to its small size, it can be installed in direct injection locations, minimizing heat loss from the piping.
- Uses a special tungsten wire that ensures long life and stable high-temperature operation.
- Equipped with a CA sensor for internal temperature control, offering more accurate and safer temperature regulation compared to previous models.
- FAS-350 (350W, 100V)
- FAS-650 (650W, 100V)
Specifications
| Model Type | FAS-350 | FAS-650 |
|---|---|---|
| Heater Capacity (W) | 350 | 650 |
| Minimum Usable Airflow (L/min) | 20 | 38 |
| Reference Weight (g) | 104 | 150 |
| Recommended Temperature Controller | TCNS-2 | TCNS-2 |
| Power Supply Voltage | Single Phase – 100V | Single Phase – 100V |
| Maximum Continuous Use Temperature | 800°C | 800°C |
| Maximum Air Intake Temperature | 40°C | 40°C |
| Maximum Usable Air Pressure | 0.2 MPa (2 kg/cm²) | 0.2 MPa (2 kg/cm²) |
| Main Casing Material | SUS304 | SUS304 |
| Heater Element | SUS321 | SUS321 |
