Manufacturer: Daikoken Heat Co., Ltd.
Model: FP-S Series

Features

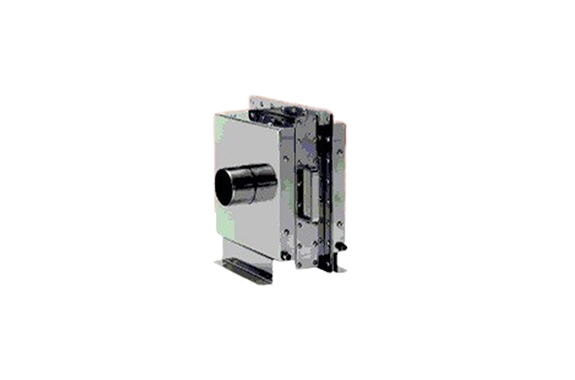

• Pre-filter unit FP-S type (maximum operating temperature 240°C)
• This is a pre-filter unit that is mainly used by connecting to the middle of piping.
• The product has a unique rectification structure to evenly distribute air to the containment filter.
• In addition, if you purchase an additional HEPA filter and external casing and packing, you can also use it as a HEPA filter unit with our model number FS type.
• Setting pre-filter
• material→ aromatic polyamide (cannot be washed and reused, operating temperature up to 240°C) 2 spare filters included
• Performance→ 30~40μm dust target (*1)
• Casing material→SUS304
• The main body withstand pressure → about 10KPa (*2)
