Daikoken Heat Co.

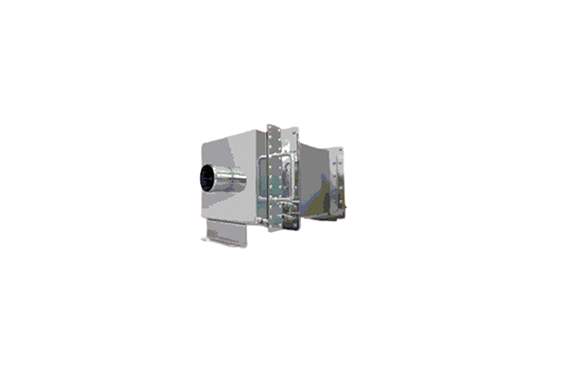

Daikoken Heat FP Series Filter Double Pipe Connection
Manufacturer: Daikoken Heat Co., Ltd.
Model: FP Series
Features
- Pre-filter unit FP type (maximum operating temperature 80°C)
- This is a pre-filter unit that is mainly used by connecting to the middle of piping.
- The product has a unique rectification structure to evenly distribute air to the containment filter.
- In addition, if you purchase an additional HEPA filter and external casing packing, it can also be used as a HEPA filter unit with our model number FN type.
- Setting pre-filter
- material→ Polyester/Polykral (washable and reusable, operating temperature up to 80°C) 2 spare filters included
- Performance→30~40μm dust target
- Casing material→SUS304
- The main body withstand pressure → about 30KPa

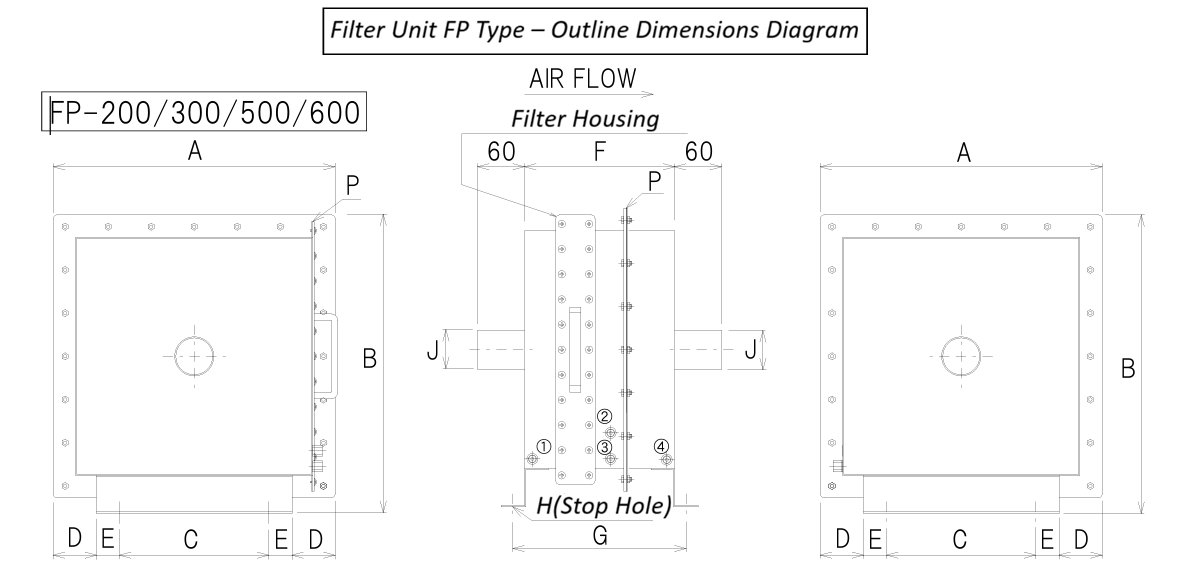

| Model | A | B | C | D | E | F | G | H (Dead Hole) | J (Entrance and Exit Diameter) | Treated airflow |
|---|---|---|---|---|---|---|---|---|---|---|
| FP-200 | 260 | 280 | 90 | 55 | 30 | 190 | 220 | 4-Φ7L15 | Φ50～75 | 2.4m3/min. |
| FP-300 | 360 | 380 | 190 | 55 | 30 | 190 | 220 | 4-Φ7L15 | Φ50～125 | 5.4m3/min. |
| FP-500 | 600 | 620 | 350 | 75 | 50 | 320 | 380 | 4-Φ9L18 | Φ75～175 | 15.0m3/min. |
| FP-600 | 710 | 730 | 400 | 105 | 50 | 350 | 410 | 4-Φ9L18 | Φ100～200 | 22.3m3/min. |
