Daikoken Heat Co.

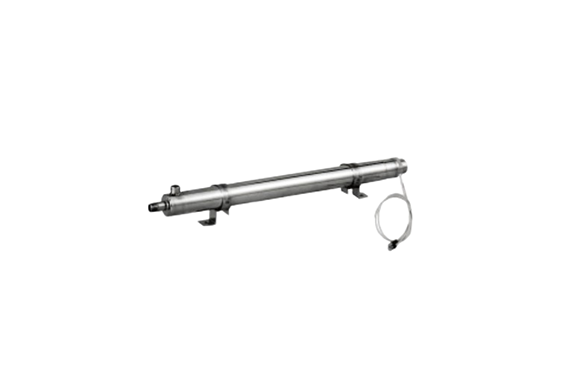

Daikoken Heat S-1 Series Hot Air Generation Heater
Manufacturer: Daikoken Heat Co., Ltd.
Model: S-1 Series
Features
- For compressed air and other high-pressure air, it is connected to maintain a stable temperature up to 800°C.
Model Types:
- S-1-800
- S-1-1000
- S-1-1600
- S-1-2000
Specifications
| Model Type | S-1-800 | S-1-1000 | S-1-1600 | S-1-2000 |
|---|---|---|---|---|
| Heater Capacity (W) | 800 | 1000 | 1600 | 2000 |
| Power Supply Voltage | Single Phase 100V | Single Phase 100V | Single Phase 100V | Single Phase 100V |
| Maximum Continuous Use Temperature | Up to 800°C | Up to 800°C | Up to 800°C | Up to 800°C |
| Minimum Usable Airflow (L/min) | 45 | 57 | 90 | 114 |
| Inlet & Outlet Diameter | Inlet: PS1/4″ (Internal), Outlet: PT1/4″ (External) | Inlet: PS1/4″ (Internal), Outlet: PT1/4″ (External) | Inlet: PS1/4″ (Internal), Outlet: PT1/4″ (External) | Inlet: PS1/4″ (Internal), Outlet: PT1/4″ (External) |
| Temperature Sensor Inlet | PS1/8″ (Internal) | PS1/8″ (Internal) | PS1/8″ (Internal) | PS1/8″ (Internal) |
| Reference Weight (g) | 450 | 570 | 600 | 760 |
| Recommended Temperature Controller | TCNS-2 | TCNS-2 | TCNS-2 | TCNS-2 |
| Materials | Main Casing: SUS304, Internal Construction: High-temperature Ni-Cr wire, Glass Ceramic Heater | Main Casing: SUS304, Internal Construction: High-temperature Ni-Cr wire, Glass Ceramic Heater | Main Casing: SUS304, Internal Construction: High-temperature Ni-Cr wire, Glass Ceramic Heater | Main Casing: SUS304, Internal Construction: High-temperature Ni-Cr wire, Glass Ceramic Heater |
