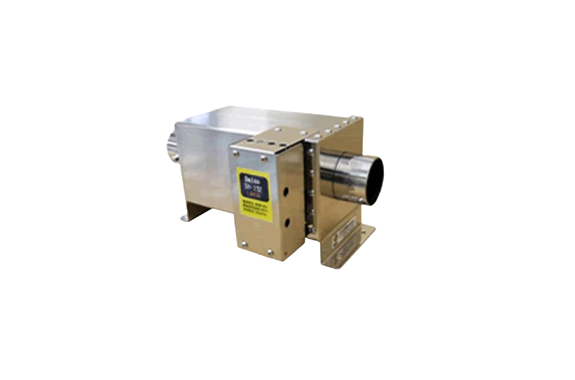

Daikoken Heat SH Series Horizontal Hot Air Generation Heater (Seeds Heater)

Manufacturer: Daikoken Heat Co., Ltd.
Model: SH Series

Features

  • This series uses a heater designed to emit low-temperature exhaust heat by utilizing a heat exchanger with high heat exchange efficiency.
  • It is designed to be more compact and stable than previous products, achieving more efficient heat air circulation.
  • The connection part is made of stainless steel (SUS), and the use of gas ensures that the heater produces clean heat with low pressure loss compared to other types of heaters.

Models:

  • SH-1-300 (0.3 kW)
  • SH-1-500 (0.5 kW)
  • SH-1-800 (0.8 kW)
  • SH-2-1000 (1 kW)
  • SH-2-1600 (1.6 kW)
  • SH-2-2000 (2 kW)

Materials:

  • Main casing: SUS304
  • Exhaust part connection: SUS321

Specifications:

  • Maximum air intake temperature: 220°C
  • Main body pressure resistance: 30 kPa
Model TypeSH-1-300SH-1-500SH-1-800SH-2-1000SH-2-1600SH-2-2000
Heater Capacity (KW)0.30.50.811.62
Power Supply VoltageSingle Phase-100VSingle Phase-100VSingle Phase-100VSingle Phase-200VSingle Phase-200VSingle Phase-200V
Maximum Continuous Use Temperature260°C280°C300°C300°C300°C300°C
Minimum Usable Airflow (Nm³/min)0.050.830.1340.1670.2680.355
Inlet & Outlet Diameterφ50 (Standard Specification)φ50 (Standard Specification)φ50 (Standard Specification)φ50 (Standard Specification)φ50 (Standard Specification)φ50 (Standard Specification)
Reference Weight (g)100012001500200025002900
Recommended Temperature ControllerTCNS-2TCNS-2TCNS-2TCNS-2TCNS-2TCNS-2
