Daitoukeiki, Japan
Daitoukeiki G11A type guage G Glycerin-Filled Guages
Product Made in Japan
Manufacturer: Daitoukeiki
Model: G11A type guage
Features
Glycerin is filled in a pressure gauge to protect the internal mechanism and
provide excellent durability, allowing for pressure measurements in places of
severe pulsating pressure and external vibration.
The liquid contact part can also be manufactured in SUS316.
Specify connecting screws other than the above.(Example:NPT,7/16 flare,etc.)
For diameter 60, connecting screws 3/8 are not available, and for diameter 75, connecting screws 1/2 are not available.
Specifications
| Standard specification | Frame (Outer frame) | Frame (Inner frame) | Connecting part | Bourdon tube |
|---|---|---|---|---|
| φ60 | SUS304 | SUS304 | C3604BD SUS316 | C2680TW C5191 Tool steel SUS316 |
| φ75・φ100 | AC7A (white) AC7A (white) | AC7A (white) AC7A (white) | ||
| φ150 | AC7A (white) AC7A (white) | AC7A (white) AC7A (white) |

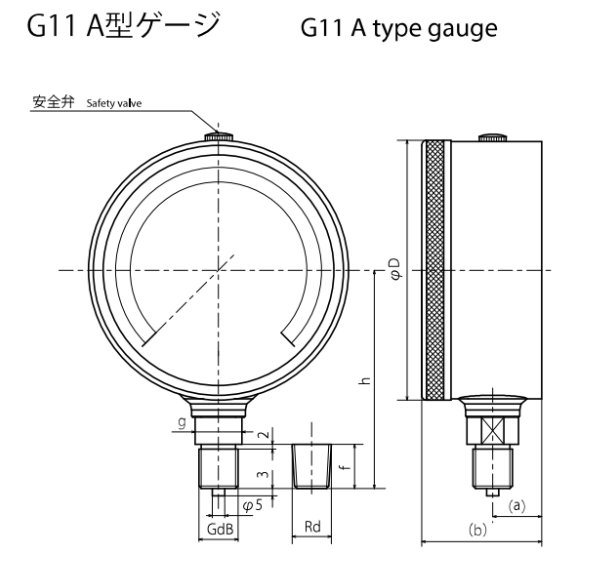

Drawings and Dimensions Table
| Size | d | (a) | (b) | f | g | h | D |
|---|---|---|---|---|---|---|---|
| φ60 | 1/4” | 12 | 35 | 14 (16) | 12 Double D | 56 | 63 |
| φ75 | 1/4” | 17 | 44 | 14 | 14 Double D | 71 | 81 |
| 3/8” | 18 | 75 | |||||
| φ100 | 3/8” | 20 | 49 | 18 | 14 Double D | 90 | 106 |
| 1/2” | 20 | 19 Double D | 92 | ||||
| φ150 | 3/8” | 22 | 51 | 18 | 14 Double D | 123 | 156 |
| 1/2” | 20 | 19 Double D | 125 |
Kouei is Distributor/Agent of Daitoukeiki.
