DataLink Bluetooth HID Converter
Manufacturer: DataLink
Model: DB-HID232 Model
Features
- Input ports
DB-HID232: Has Bluetooth (HID).
DB-232HID: Has RS232C. - Power supply
DB-HID232/DB-232HID: Powered by USB AC adapter (to be prepared by customer) Can be powered by USB battery. - Connector size.
- Communication parameters can be set.
- Conversion code can be set.
- Communication distance
DB-HID232/DB-232HID: Approximately 10m when there are no obstacles.
Specifications
◆Common outline specifications
| Model | DB-HID232 | DB-232HID |
|---|---|---|
| Operating conditions | 0 to 50°C, no condensation | Same as above |
| Power supply | Powered by USB AC adapter | Same as above |
| Current consumption | 58mA when not communicating, 115mA when communicating | 60mA when not communicating, 120mA when communicating |
| External dimensions | Width: 33mm Height: 16mm Depth: 57mm | Same as above |
| Weight | 25g | Same as above |
| RS232C communication speed | 300 to 115200 bps | 300 to 230400bps |
| RS232C side bit length | 7/8 | Same as above |
| RS232C side stop bit | 1/2 | Same as above |
| RS232C side Parity | Odd/Even/None | Same as above |
| RS232C side flow control | XON/XOFF RTS/CTS | Same as above |
◆Connection configuration image

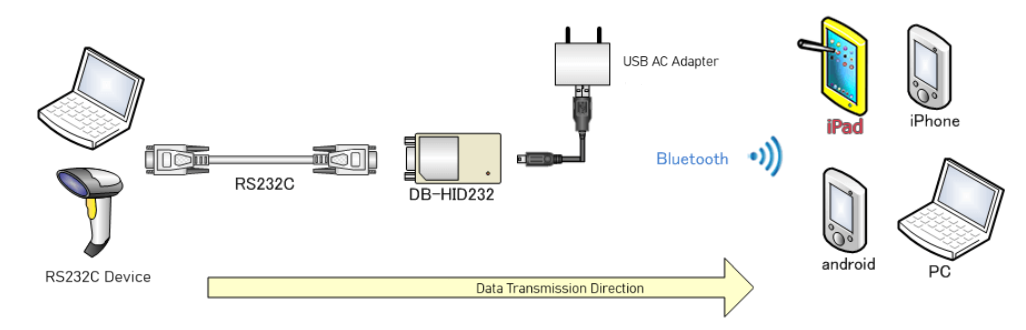

- DB-HID232 converts RS232C serial data to Bluetooth (HID) keyboard events.
- Data flows from RS232C → DB-HID232 → Bluetooth (HID).
- It enables RS232C devices to send input to PCs, Android tablets, iPads, etc., via Bluetooth HID.

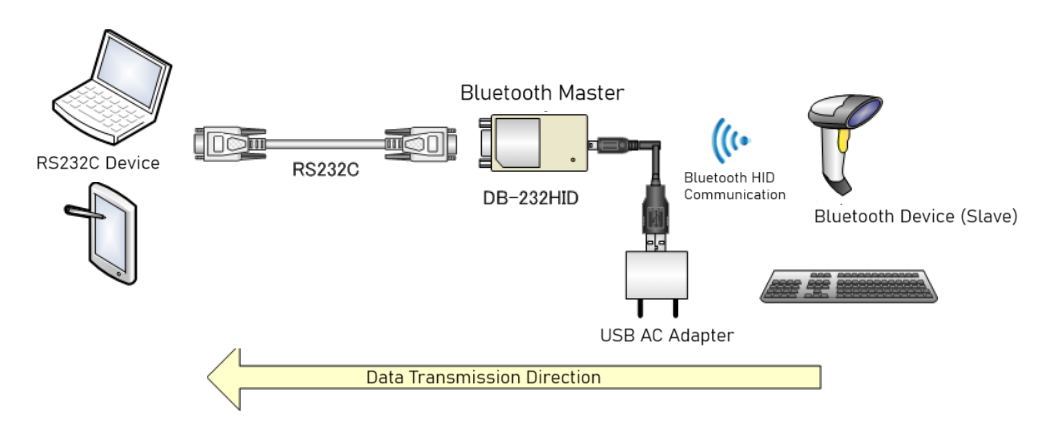

- DB-232HID converts Bluetooth (HID) keyboard events to RS232C data.
- Data flows from Bluetooth (HID) → DB-232HID → RS232C.
- It supports Bluetooth HID devices like barcode readers and digital calipers.
- Communication distance is approximately 10 meters without obstacles (Class 2).
- Both devices can be powered by a USB battery.
- Compatible with Windows, iOS, and Android platforms.
