Datalink Corporation

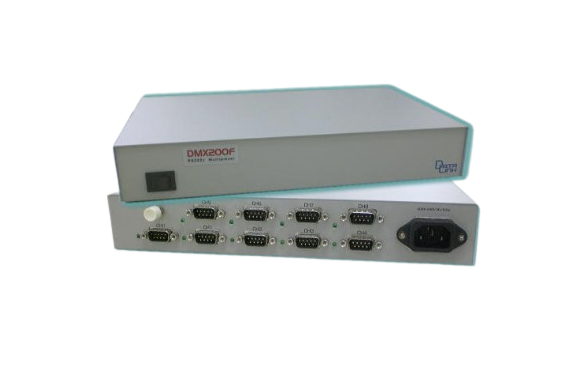

DataLink DMX200F Series RS232C(RS422) Multiplexer

Manufacturer: DataLink
Model: DMX200F
Features
- DMX200F is a model compatible with the DMX200.
- All channels use a D-sub 9-pin connector in DTE arrangement.
- A single controller can manage up to eight RS232C terminal devices.
- Equipped with a wide-range built-in power supply (AC85V to AC240V).
- Metal housing provides enhanced shock and noise resistance.
- Each channel includes a communication status LED indicator.
- The master channel has a 1024-byte buffer.
- Supports a simultaneous broadcast function, but does not support polling.
- The master and slave channels can be configured with different communication settings.
- Includes a 5-year free warranty, starting from the shipment date from our company.
