DataLink Enet-HDLC-RoHS Ethernet/HDLC Protocol Converter

Manufacturer: DataLink
Model: Enet-HDLC-RoHS
Features
- Enet-HDLC-RoHS and Enet-HDLC/AC operate in Asynchronous Balanced Mode (ABM) and support the LAP-B procedure class.
- The Enet-HDLC/PLL series is a higher-end version of the Enet-HDLC series.
- It features a built-in PLL function, enabling connection to HDLC devices that do not output a transmission synchronization signal.
- Synchronization is possible without a clock signal, using the PLL function.

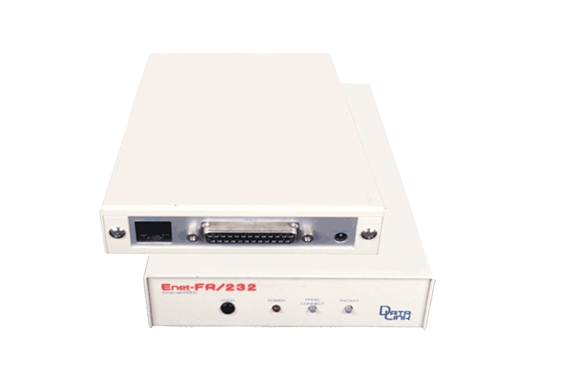

- Enet-FR and Enet-FX are communication devices that support HDLC free run and come with built-in UDP/IP protocols.
- These devices can communicate with host computers via UDP/IP socket communication.
- The Ethernet side supports UDP/IP and TELNET as standard.
- TCP/IP connections can be opened or closed from either the Enet-HDLC side or the host side.
- Communication settings and Ethernet-related addresses are configured interactively in program mode and stored in FLASH ROM.
- Settings can be made by:
- Connecting a cable to the HDLC port, which temporarily functions as RS232C or RS422 during setup.
- Or by using TELNET login via Ethernet.
- The Ethernet port supports 10Base-T / 100Base-TX (auto-switching).
- The Enet-HDLC/AC can be DIN rail-mounted using the optional bracket (model: DRA-1).
- The HDLC port is selectable:
D-sub 25-pin female (RS232C)
D-sub 15-pin female (RS422) - Please specify the type when ordering.
- Connector shape summary:
RS232C type: D-sub 25-pin female
RS422 type: D-sub 15-pin female (for both Enet-HDLC-RoHS and Enet-HDLC/AC)
Specifications
Model | Enet-HDLC-RoHS |
---|---|
Operating conditions | Temperature: ±0 to 50°C (included AC adapter is ±0 to 40°C) Humidity: 30 to 80% (no condensation) |
Input Voltage Range | AC90-264V (47/63Hz) (AC adapter) |
Main unit current consumption | 520mA / DC5V (max) |
External dimensions | W120 × H30 × D189mm (including connectors and other protrusions) |
Weight | Approx. 600g (body only) |
Application Layer | TELNET *2 |
Transport Layer | TCP |
Network Layer | IP, ICMP *3 |
Port | 10Base-T / 100Base-TX auto-switching (RJ45 connector) |
HDLC Interface Connector | RS232 type DSUB25 RS422 type DSUB15 |
HDLC Commands | Support |
