Datalink Corporation

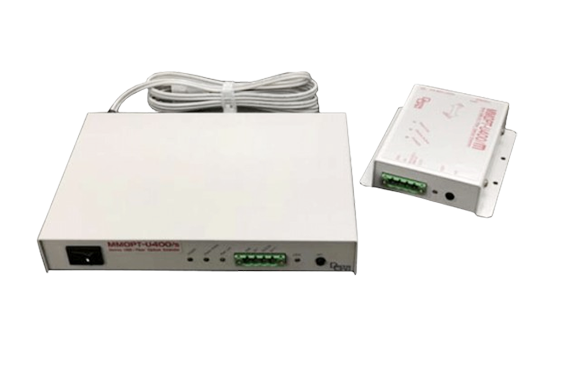

DataLink MMOPT-U400 Series Fiber Optic USB Extender

Manufacturer: DataLink
Model: MMOPT-U400
Features
- The MMOPT-U series extends the distance between a PC and a USB device using a single-core SC multimode fiber optic cable.
- You can extend the MMOPT-U up to 500 meters using a single fiber optic cable.
- The PoUSB-OPT series extends the distance between a PC and a USB device using a single-core SC singlemode fiber optic cable.
- You can extend the PoUSB-OPT up to 6 kilometers using a single fiber optic cable.
- These fiber optic USB extenders support factory and surveillance applications and work with USB printers, keyboards, mice, cameras, and HDDs.
Specifications
Model | MMOPT-U400 |
---|---|
Composition | PC side: MMOPT-U400/m × 1 USB device side: MMOPT-U400/s × 1 |
Available current | 500mA per USB device |
USB Connector | MMOPT-U400/m: TypeB × 1 MMOPT-U400/s: TypeA × 4 |
USB communication speed | MMOPT-U400/m: USB2.0/480Mbps USB1.1: 12Mbps/1.5Mbps |
Communication range | 500m |
Optical Connector | 1-core SC cable compatible connector |
Optical conversion method | Digital Photoelectric Conversion |
Supported OS | Windows 7, 8, 10, 11 |
◆Fiber Optic USB Extender
- USB extender includes a hub with up to 4 ports, allowing USB devices to be extended up to 6 km.
- Port selection: Available in 1, 2, or 4-port models; USB 2.0 compatible (up to 480 Mbps).
- USB optical conversion: Converts electrical signals to optical signals to reduce noise interference.
- Transmission distance:
MMOPT-U series supports up to 500 meters (multimode fiber).
PoUSB-OPT series supports up to 6 kilometers (singlemode fiber). - Power supply method:
Host side powered via USB
Slave side powered via AC adapter (5V) - Provides a stable 500mA supply to external USB devices
- No driver required: Plug & Play on Windows 7/8/10/11, recognized instantly.
