Manufacturer: Data Link Co., Ltd.
Model: OTG-BLE/HID

Features

• Transmits HID data from OTG USB to Bluetooth
• Converts USB HID devices (mouse, keyboard, barcode reader) to wireless
• Enables connection to PCs, smartphones, and more via Bluetooth
• Uses low-power Bluetooth Low Energy (BLE) for efficient wireless communication

Specifications

◆Turn the  wired USB HID device into a wireless device with Bluetooth

HID devices like USB keyboards, mice, and barcode readers can connect wirelessly via Bluetooth to PCs, iPhones, iPads, and Android devices, powered by a USB AC adapter or mobile battery.

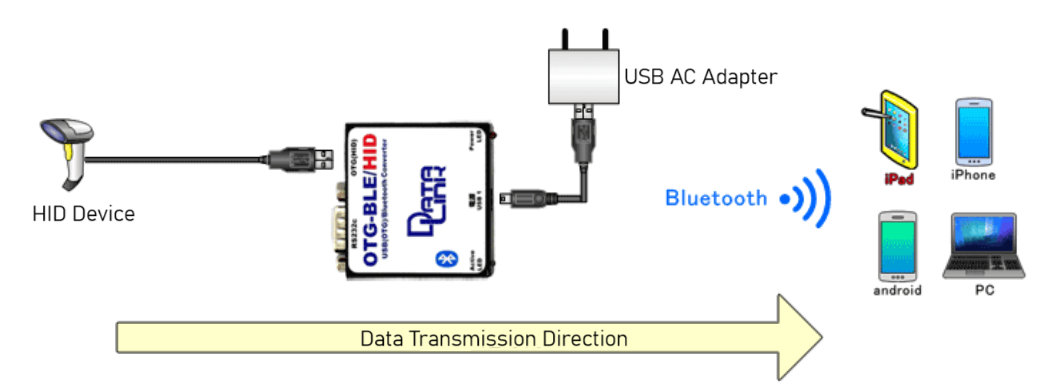

Fig – OTG-BLE/HID connection configuration

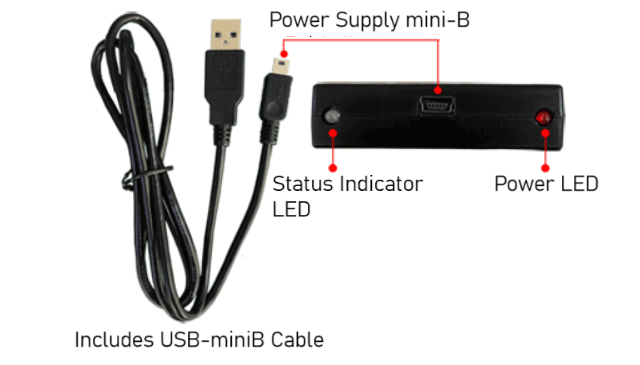

◆USB 5V external power supply

• Power is supplied via a USB-miniB connector from a user-provided 5V USB source.
• An AC adapter (USB 5V output) is not included.
• Users may use a PSE-compliant USB power adapter or a mobile battery as the power source.
• A USB-A to mini-B cable is included.

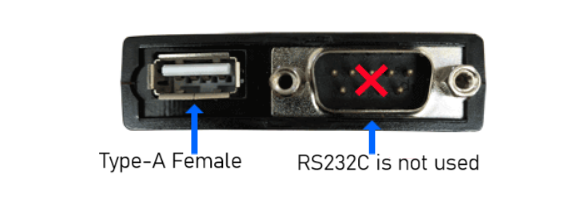

◆USB A female

• The OTG USB port is a USB Type-A female.
• Users can connect devices like a keyboard or mouse to this port.
• The RS232C port is for firmware updates only and not intended for user operation.

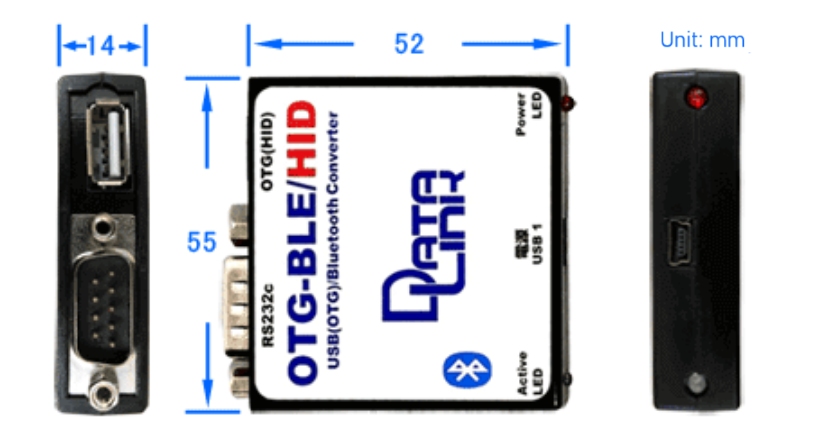

◆Specifications and Shape

Physical Specifications
