Manufacturer: DataLink

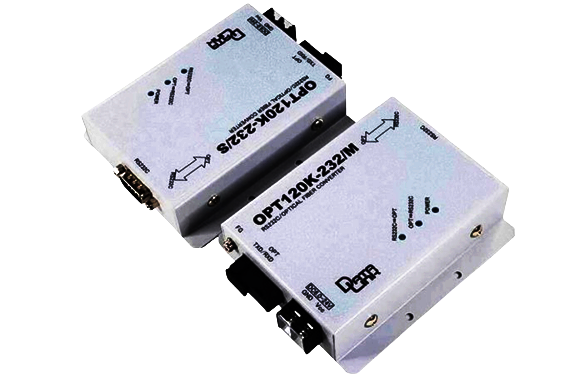

Model: OPT120K-232

Features

• Ensures stable communication with high noise resistance using optical fiber
• Minimizes malfunction and damage from lightning and external noise
• Metal shell with grounding point enhances noise protection
• Converts RS232C signals to optical for communication up to 120 km
• High-performance optical transmitter and sensitive receiver extend range
• Supports cost-effective, bidirectional communication with single-core fiber
• Functions as an optical sync modem for RS232C start-stop devices (OPT120K-232)
• No setup required—just connect and power on
• Easy installation with DIN rail bracket or direct screw mount
• Equipped with single-mode SC connector for fiber interface

Specifications

◆RS232C long distance optical converter

• RS232C optical converters are used in pairs.
• RS232C can be extended up to 120 km by optical conversion (single core).
• It communicates bidirectionally between start-stop synchronous devices and synchronous devices via optical fiber.
• No settings are required for communication.

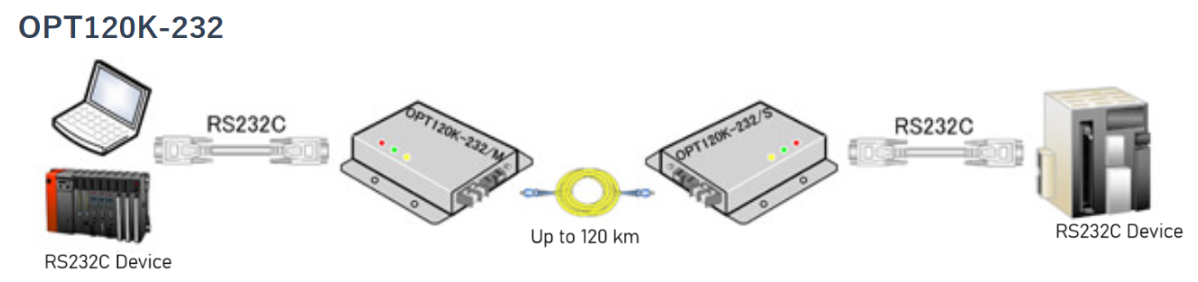

◆Connection configuration

By using optical conversion, the communication distance between two RS232C asynchronous devices can be extended by 120 km.

◆Outline specifications
