Manufacturer: DataLink
Model: OPT120K-SYNC

Features

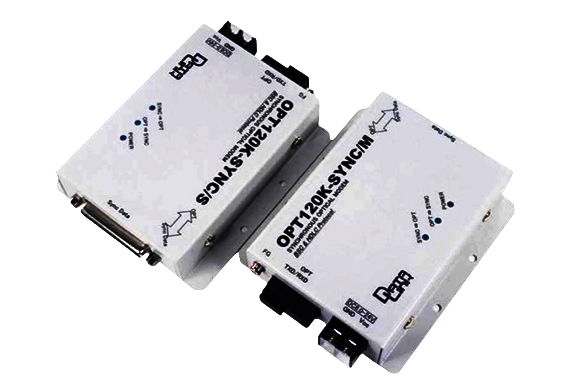

• OPT120K-SYNC is an optical synchronous modem that extends the distance between synchronous devices up to 120 km using single-core optical fiber.
• Enables two-way communication while reducing cost.
• Features a noise-resistant metal shell with a grounding point.
• Equipped with a high-performance optical transmitter and sensitive receiver for stable, long-distance communication.
• Immune to lightning and external noise, reducing the risk of equipment damage.
• Plug-and-play operation—no configuration needed; just connect and power on.
• Offers flexible mounting with DIN rail bracket or direct screw-mount.
• Utilizes a single-mode SC connector for optical fiber connection.

Specifications

◆RS232C long distance optical converter

• RS232C optical converters are used in pairs.
• RS232C can be extended up to 120 km by optical conversion (single core).
• It communicates bidirectionally between start-stop synchronous devices and synchronous devices via optical fiber.
• No settings are required for communication.

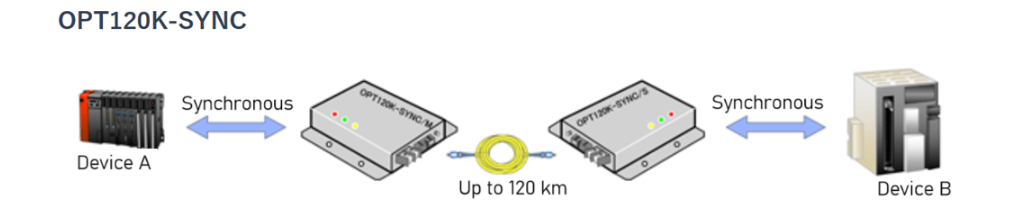

◆Connection configuration

Through optical conversion, the communication distance between two synchronous devices can be extended by 120kM.

◆Outline specifications
