Manufacturer: DataLink
Model: RSCV-T Series

Features

• Provides RS232C to RS422 conversion for stable long-distance communication
• Supports external power input via an AC adapter (sold separately) or through pins 9 and 14 of the RS232C port
• Equipped with a Dsub25 male RS232C connector and M2.6 x 6 male mounting screw
• Features a 5-pin terminal block for RS422 connections

Specifications

◆RS232C ⇋ RS422 converter

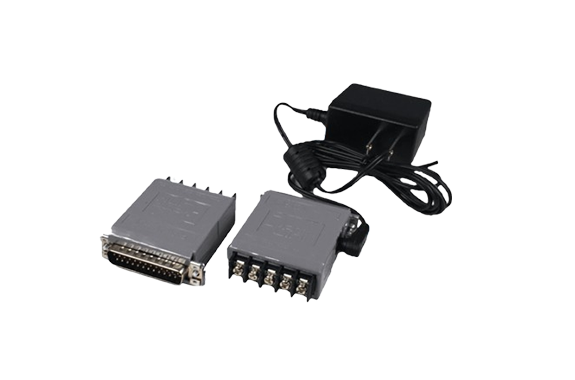

• The RSCV series is a compact and lightweight RS232C to RS422 converter designed in a connector-sized format
• It converts RS232C signal levels to RS422 signal levels, enabling seamless connection between RS232C and RS422 devices
• Supports communication distances of up to 1200 meters between RS232C and RS422 devices
• Available in models with or without power supply requirements and with optional isolation functions
• Complies with the RoHS directive for environmentally conscious design

◆External Dimensions
