Manufacturer: DataLink

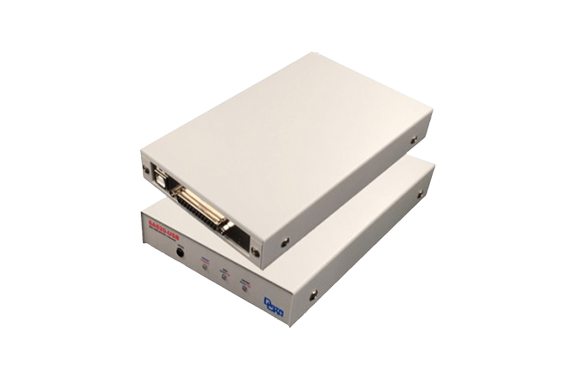

Model: SAS20-USB Series

Features

• Includes one USB (pseudo COM) port and one BSC port for flexible communication
• SAS20-USB: Photo-isolated USB to BSC converter with PLL. Supports BSC1/2/3, 4 USB send modes, bidirectional comms, EEPROM settings. Enhanced protection and noise resistance.
• Built-in PLL function enables synchronization with BSC devices that do not output a transmission synchronization signal
• Allows seamless data transmission on the USB side without requiring awareness of the BSC procedure
• You can configure communication settings, including timers and retry counts for the BSC channel, directly from the USB side and save them to the internal EEPROM memory.
• Supports bidirectional communication between USB (pseudo COM) and BSC channels
• Offers selectable transmission methods for the USB (pseudo COM) channel, including delimiter-based, timeout-based, data length-based, and procedure-based (point-by-point or batch conversion)
• Supports BSC1 (contention), BSC2 (dialing), and BSC3 (polling and selecting) on the BSC channel

Specifications
