Datalink WFS100 Series Wi-Fi Temperature And Humidity Measurement Unit

Manufacturer: DataLink
Model: WFS100 Series

Features

WFS100 is a wireless unit that receives measurement commands from a computer via Wi-Fi and measures temperature and humidity.

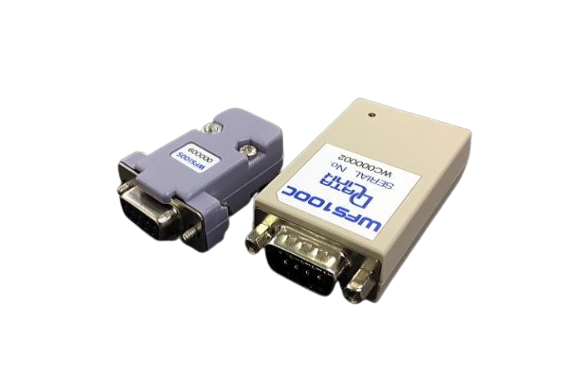

The system consists of a control unit, WFS100C, and a sensor unit, WFS100S, which are used together either through direct connection or by cable.
It supports multi-point measurement from multiple units across various locations.
The unit is small and lightweight, with a connector-sized form factor.
Wi-Fi parameters can be configured on the WFS100C using the included RS232C cable.
PC display software, DC-WiFi+THS-AP-PC, is available for visualizing data and can be downloaded from our website.
The software is compatible with Windows 7, 8, and 10.

Model	WFS100C	WFS100S
Operating Conditions	Temperature: ±0~+50°C Humidity: No condensation	Temperature: -35~+75°C Humidity: Dustproof/Condensation-resistant Excluding connectors and sensors
Coin-free Standard	Wi-Fi IEEE802.11b/g/n (2.4GHz)	–
Transmission Distance	50m (maximum)	–
Serial Interface	RS232C Dsub9 pin male	RS232C Dsub9 pin female
Power Consumption	0.1A or less/DC3.3V	–
AC Adapter Input Voltage Range	AC100V–AC240V	–
AC Adapter Maximum Output	Max 2A/DC3.3V	–
Body Dimensions	W33 × H16 × D57mm	W31 × H15.4 × D44mm
Weight	Approximately 25g	Approximately 15g
Environmental Standards	RoHS Compliant	RoHS Compliant

Included Items
WFS100C (control unit)	1 piece
WFS100S (sensor part)	1 piece
RS232C cross cable 1m (for setting)	1 bottle
RS232C straight cable 1m (for sensor extension connection)	1 bottle
AC adapter (DC3.3V output)	1 piece
User’s Manual	1 volume
