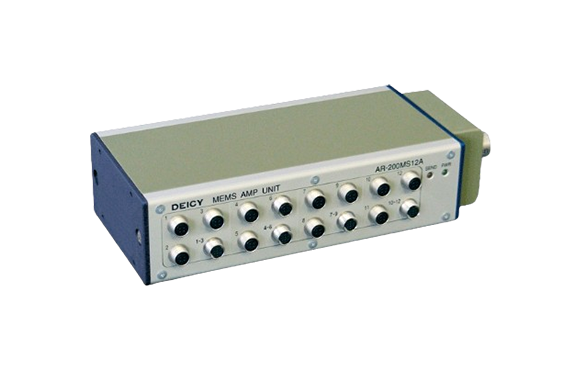

Deicy AR-200MS12A 12-channel MEMS Sensor Input Unit
Manufacturer: DEICY Co., Ltd.
Model: AR-200MS12A
Features
- The input can be selected from the MEMS range with power supply for MEMS sensors and the DC voltage range.
- The sensor drive power supply can be selected from regulated 5V or 10V, and is compatible with a wide range of sensors.
- It is also possible to generate a 2.5V midpoint (bias) voltage for sensors that do not have a midpoint input voltage.
- Equipped with an input connector for connecting each input channel or a 3-channel aggregated input connector for connecting a 3-axis acceleration sensor.
Specifications
| Item | Specification |
|---|---|
| Number of channels | 12 ch |
| Input | Voltage: ±2 V / 5 V / 10 V (When connected to MEMS sensor, select ±2 V) |
| Connector | HR25 4-pin; for 3-axis accelerometer sensor connection use HR25 8-pin |
| Low-pass filter | 8th-order Butterworth type (IIR digital filter) |
| Cutoff frequencies | 20 Hz / 50 Hz / 100 Hz / 200 Hz / 500 Hz / 1 kHz / 2 kHz / Pass |
| Excitation voltage for MEMS sensor | 10 V 15 mA constant voltage or 5 V 18 mA constant voltage |
