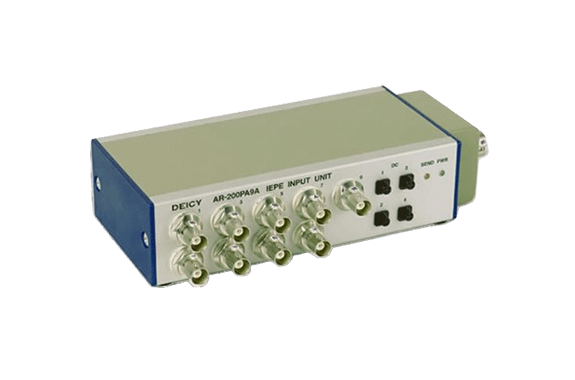

Deicy AR-200PA9A 9ch IEPE Input Unit
Manufacturer: DEICY Co., Ltd.
Model: AR-200PA9A
Features
- For the SR-200 series, it has 9 channels of piezoelectric (IEPE) sensor input with built-in amplifier, and 4 channels of +/-5V range with sensor drive power supply, allowing connection of sensors that require a power supply.
- The IEPE input channel also has a DC voltage range, and the measurement range and low-pass filter can be set independently for each channel.
Specifications
| Item | Specification |
|---|---|
| Number of channels | IEPE 9 ch and ±5 V external voltage input × 4 |
| Input | IEPE: ±50 mV / 100 mV / 200 mV / 500 mV / 1 V / 2 V / 5 V / 10 V IEPE constant current OFF: ±1 V / 2 V / 5 V / 10 V External voltage input: ±5 V |
| Connector | IEPE: BNC External voltage: Binder 4-pin (with sensor power supply) |
| Low-pass filter | 8th-order Butterworth type (IIR digital filter) |
| Cutoff frequencies | 50 Hz / 100 Hz / 200 Hz / 500 Hz / 1 kHz / 2 kHz / 5 kHz / Pass |
