Manufacturer: DEICY Co., Ltd.

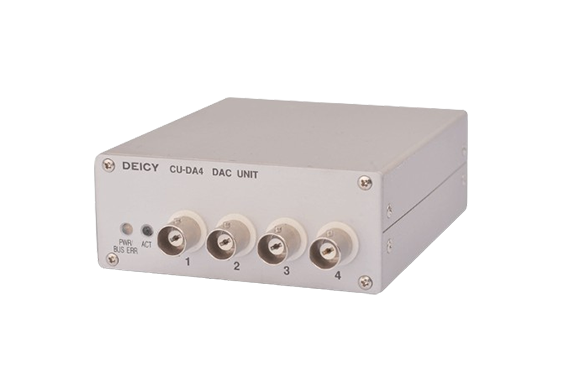

Model: CU-DA4

Features

• This is a 4-channel DA conversion unit that converts digital values decomposed from received CAN messages into DA values and outputs them as voltage values.
• Outputs the set voltage value for each incoming CAN message
• Output range per channel, configurable to ±5 or 1 – 10 V
• DA conversion is 16-bit, minimum conversion period is 128 μsec × 4 (when baud rate is set to 1 Mbps)
