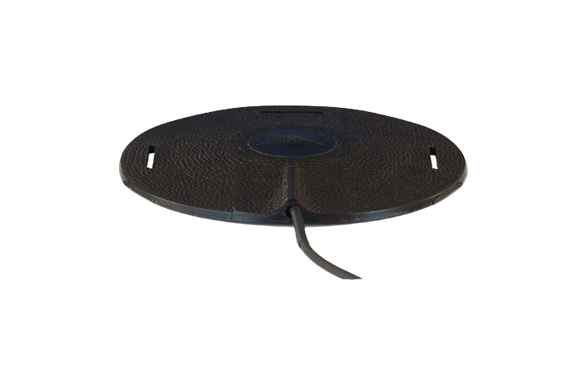

Deicy KB103SV-100 Seat Pad Sensor For Three Axis Vibration Exposure Measurement
Manufacturer: DEICY Co., Ltd.
Model: KB103SV-100
Features
- Seat pad sensor for measuring vibration exposure conforming to ISO 2631, 8041, 10326-1, 7096.
Specifications
| Model | KB103SV-100 |
|---|---|
| Purpose | Vibration Sensor, Sheet-Type Sensor (ISO 2631, 8041, 10326-1, 7096) |
| Axes | 3 |
| Sensitivity (mV/G) | 100 |
| Max Usable Acceleration (G) | 60 |
| Frequency Response (Hz ± 3dB) | 0.1 ~ 50 |
| Common Mode Frequency (kHz) | >10 (Pad Not Included) |
| Operating Temperature Range (°C) | -10 ~ +50 |
| Weight (g) | 310 (Excluding Cable) |
| Constant Current (mA) | 2 ~ 20 |
| Shape | Bending Type |
| Cable Direction | Straight |
| Connector | Straight 2m Lead, Binder 711 (Optional) |
| Attachment Method | Straight Mount, Strap Mounting |
| Case Material | Aluminum/Silicone |
| Dimensions (mm) | 200 Ø x 12 (H) |
| Suitable Cable | 034 (50cm) Binder 711 (Optional) · BNC (Optional) |
