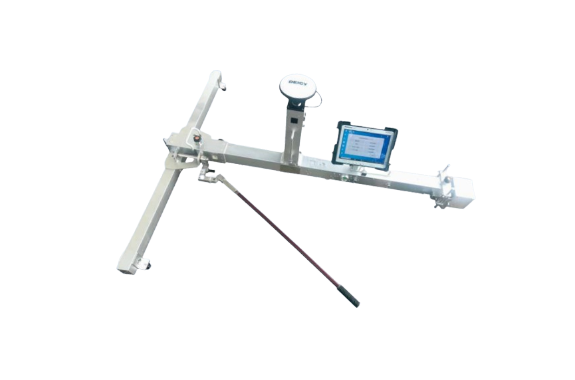

Deicy LR-S100 Track Inspection Device

Manufacturer: DEICY Co., Ltd.
Model: LR-S100

Features

A high-precision gyro sensor delivers superior reproducibility, and as a result, it clearly surpasses conventional models in performance.
In addition, the design allows easy assembly and disassembly, so users do not need any cable connections; therefore, the system also ensures excellent mobility.
Moreover, the measuring beam measures 1.25 m in length and weighs approximately 14 kg, which means the unit remains extremely compact, lightweight, and easy to handle.

Specifications

Item	Content
Model	Standard model (1435mm) Compact model (762mm, 1000mm, 1067mm, 1372mm, etc.) Wide model (1676mm) Separate measurement devices available for the models listed above
Measurement & Recording Items	10m Low-frequency (left, right) 10m Low-frequency (left, right) Large, axis, flat (2.5m, 5m, etc.) selection
Maximum Measurement Distance	10m Low-frequency (left, right) 10m Low-frequency (left, right) Large, axis, flat (2.5m, 5m, etc.) selection
Measurement Method	Used “micro differential method” with a microscope
Detection Gap Length	1.25m
Data Recording Interval	0.25m
Repetition Accuracy	LR-S120: 0.15mm / LR-S100: 0.2mm / LR-S080: 0.5mm / LR-S050: 0.7mm (10m standard deviation)
Travel Speed	1 ~ 28km/h (measure in speed, with optional features)
Measurement Range	Height (±300mm) / Water (±300mm) / Axis (+45mm/-20mm) / Flat (+300mm)
Recording Data File Format	CSV (cut section of ASCII data) and TAFFmat format (with text header and binary data)
Recording Data Type	0.25m, 2.5m, 5m, 20/40m step size. Corrected to the left or right rail height, axis, water, flatness
Standard Auxiliary Equipment	Set of base rail auxiliary equipment for recording data. Corrected base rail data added to the file after recording
Interface	Bluetooth 2.1+EDR standard
Measurement	Data recording and measurement of each base and axis track
