DEICY

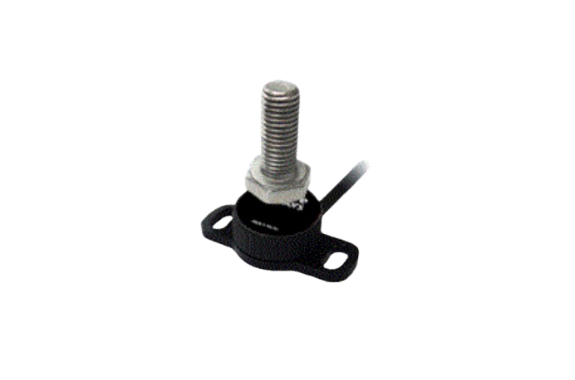

Deicy MHR5140 Series Magnetic-Hall Rotary Position Sensor
Manufacturer: DEICY Co., Ltd.
Model: MHR5140 Series
Features
- Angle range: 20° to 360°, every 1°
- The magnet and sensing units are housed in separate housings
- Nonlinearity < 0.25%FS
- 5 VDC or 8 to 30 VDC powered
- Protection class IP68/IP69K

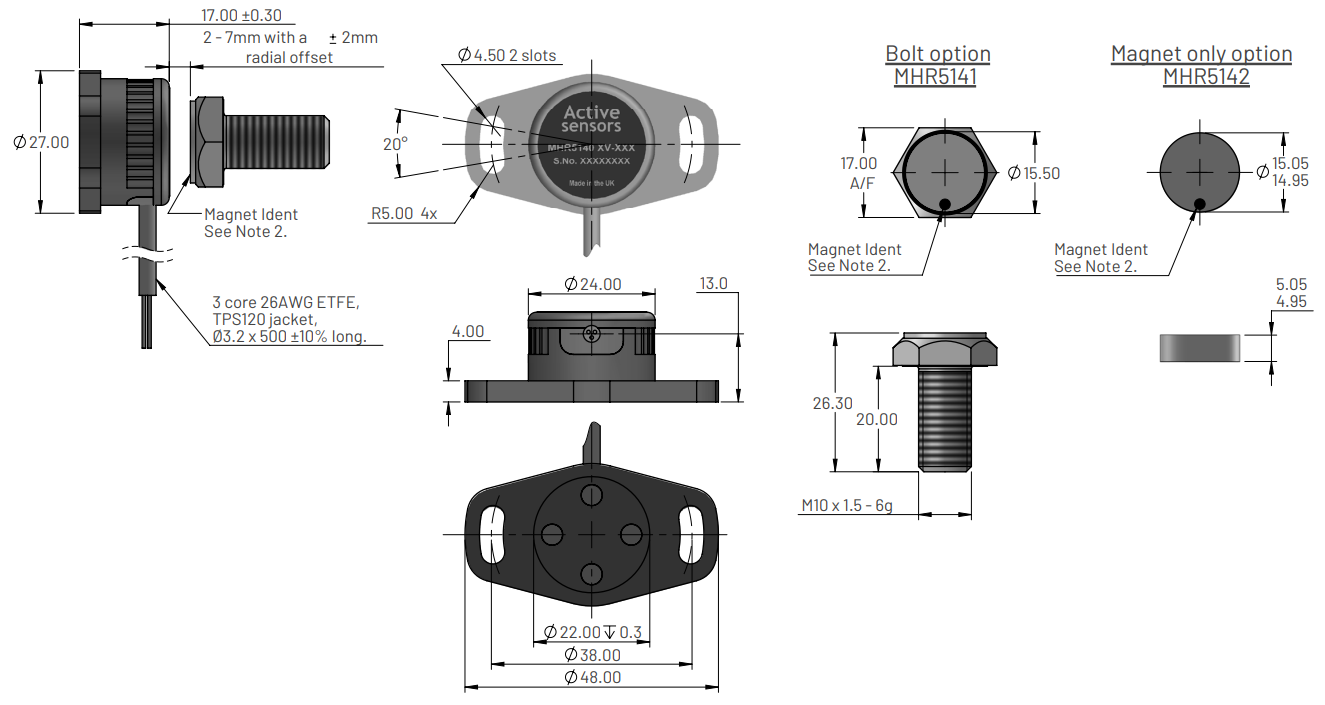

■ Dimensions for MHR5141 and MHR5142 – Flange mounting – magnet options
