Manufacturer: DEICY Co., Ltd.
Model: RP5200 Series

Features

• Angle range: 100°, 130°, 350°
• 3 types of stainless steel shafts
• Aluminum flange mount case
• Twin ball race shaft bearing
• Heat shrink boot option
• Protection class IP66

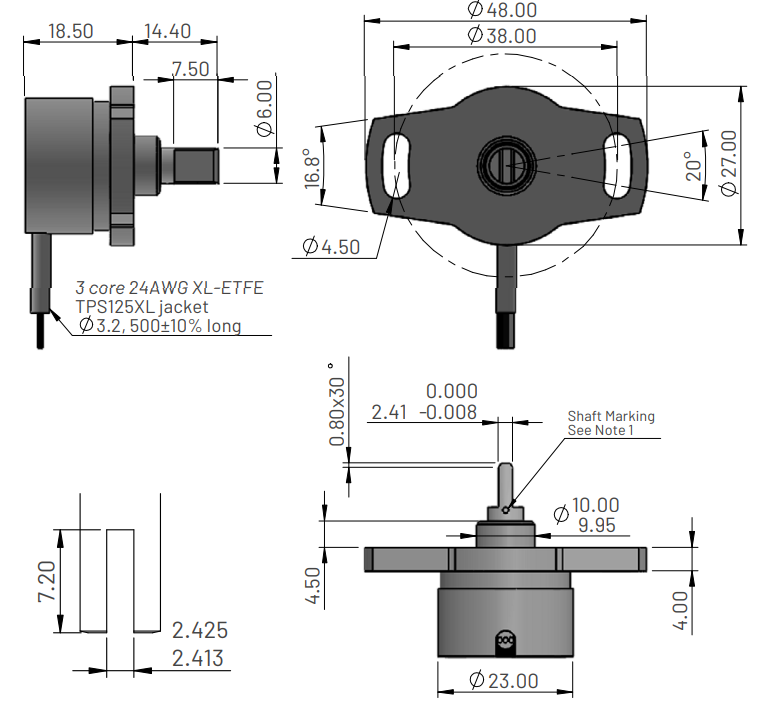

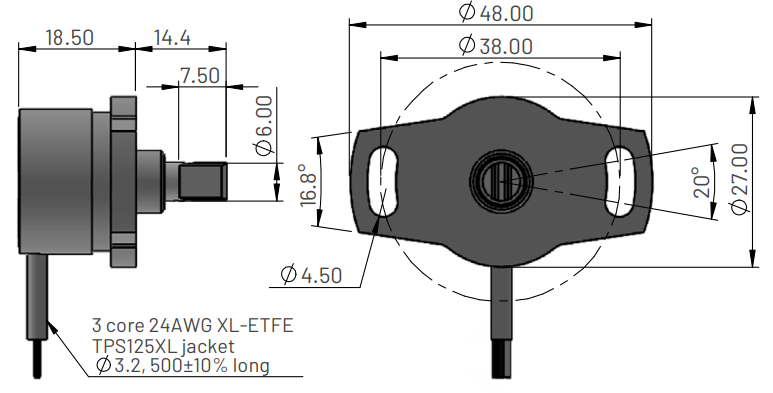

■ Dimensions for RP5110 – Flange mounting – sprung shaft

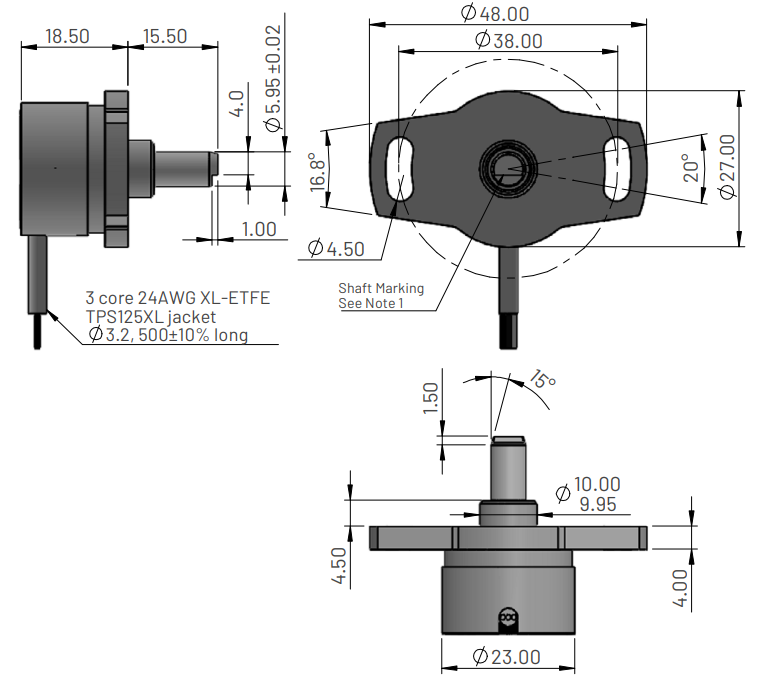

■ Dimensions for RP5220 – Flange mounting – round shaft

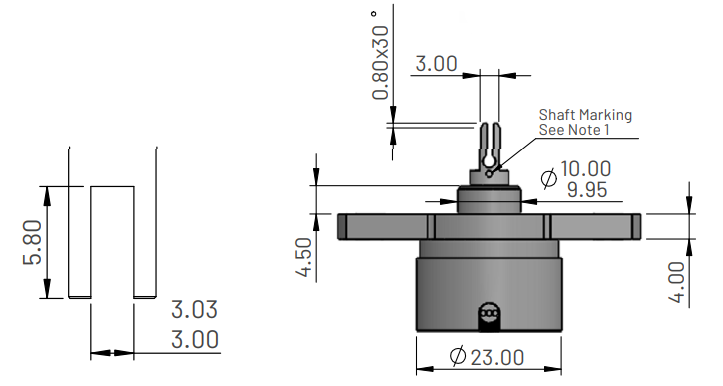

■ Dimensions for RP5230 – Flange mounting – blade shaft
