Manufacturer: DEICY Co., Ltd.
Model: SLS1300 Series

Features

• Low price
• Single-element sliding track
• Measurement length 25mm to 350mm
• Nonlinearity < ±0.15 %FS
• 13mm diameter slim aluminum case
• 4mm diameter stainless steel shaft
• Protection class IP65
• Compact and lightweight

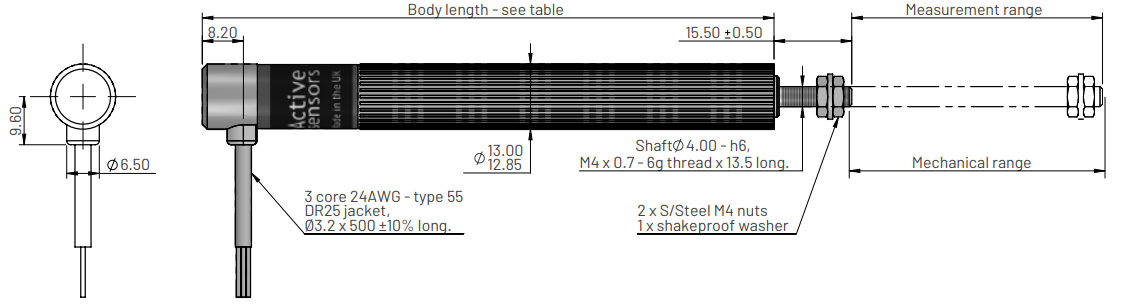

■ Dimensions for SLS1321 body clamp mounting

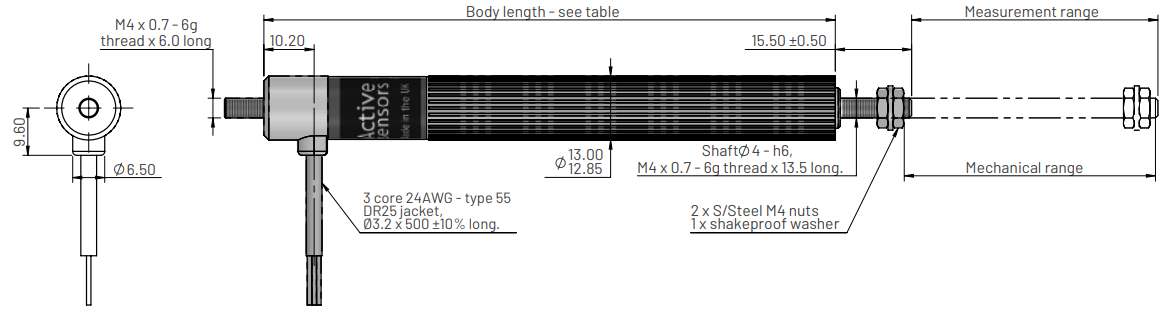

■ Dimensions for SLS1326 threaded mounting

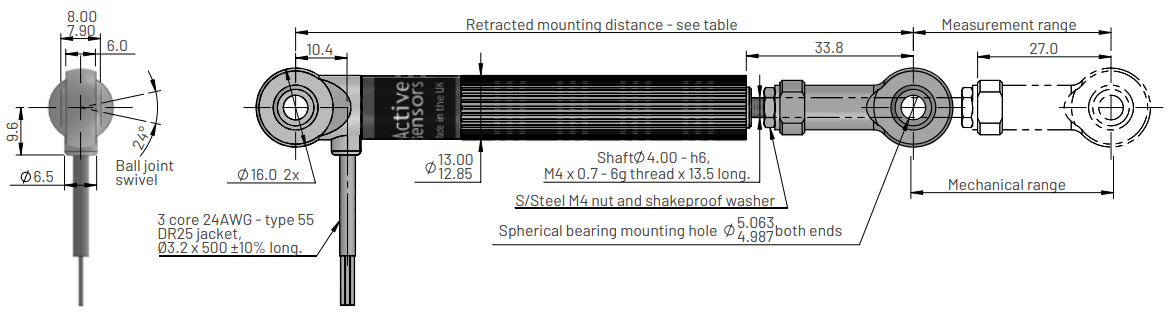

■ Dimensions for SLS1322 5mm rod-end mounting

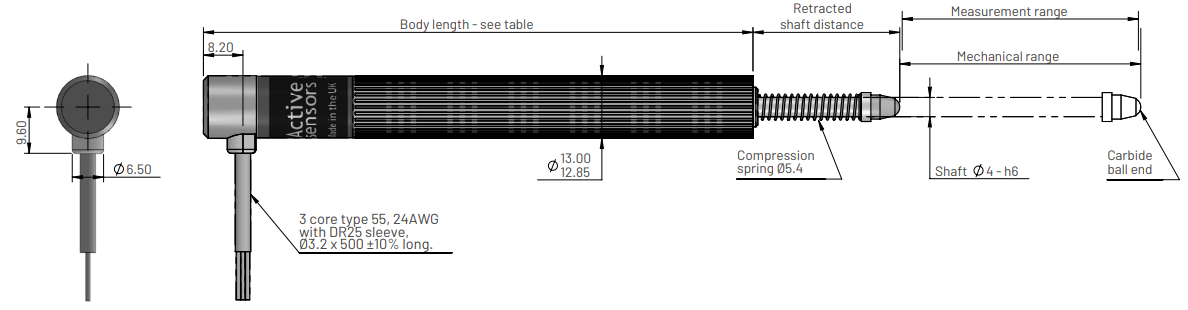

■ Dimensions for SLS1323
