Eagle Clamp SBT Type Screw Vertical Clamp
Manufacturer: Eagle Clamp
Model: SBT Type
Features
The newly developed tip pad clamps the sloped parts tightly!
Specifications
Uses
Vertical installation, Horizontal installation, Water installation, Transport, Welding, Assembly, Construction, Installation.
Suitable Materials
Piping materials (Iron pipe, Cast iron pipe)
Piping temperature range: 5° to 10° C.
Model | Load Capacity Minimum to Maximum(kg) | Applicable Dimensions (mm)A | Dimensions (mm) | |||||
| B | C | D | E | F | G | |||
| SBT-500 (1-17) | 100〜500 | 1〜17 | 23 | 25 | φ27 | 22 | 41 | 29 |
Model | Dimensions (mm) | ||||||
| H | I | J | K | L | M | N | |
| SBT-500 (1-17) | 140 | 112 | 15 | 24 | 99 | φ22 | 46 |
Model | Dimensions (mm) | Product Weight (kg) | ||||
| O | P | Q | R | S | ||
| SBT-500 (1-17) | φ27.5 | 150 | φ15 | 24 | φ27 | 1.8 kg |

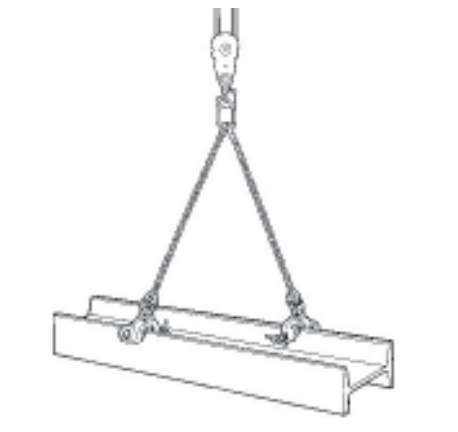

Use
Vertical steel, side stitching, horizontal steel, transportation, assembly, mounting, welding
