Electronic Magnetic Industry Co.

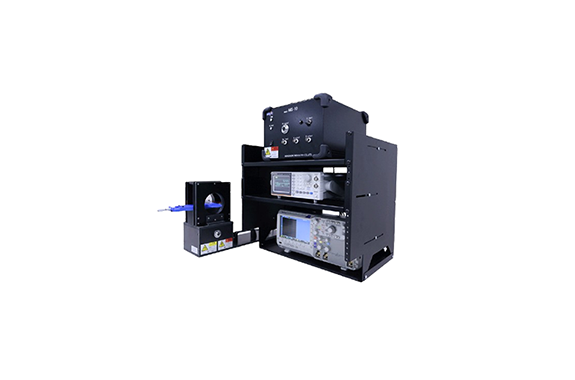

EMIC AMS-10 Amorphous Wire Measuring System
Manufacturer: Electronic Magnetic Industry Co., Ltd.
Model: Conveyor Type Through-Type
Specifications
| Model | AMS-10 Amorphous Wire Measurement System |
| Magnetic field generation coil | Helmholtz coil: 4mT or more (at500Hz) |
| Detection Coil | Differential type |
| H Measuring Unit | Shunt resistance system |
| B Measuring Section | Analog integration method |
| Measurement frequency | Band: 100~1kHz (-3dB) |
| Power Source | AC100～240V 50/60Hz |
| Magnetic field generation coil | 650 (W) × 300 (H) × 140 (D) mm or less Approx. 6 kg |
| Measurement Amplifier | 260 (W) × 180 (H) × 300 (D) mm or less Approx. 5 kg |
