Electronic Magnetic Industry Co.

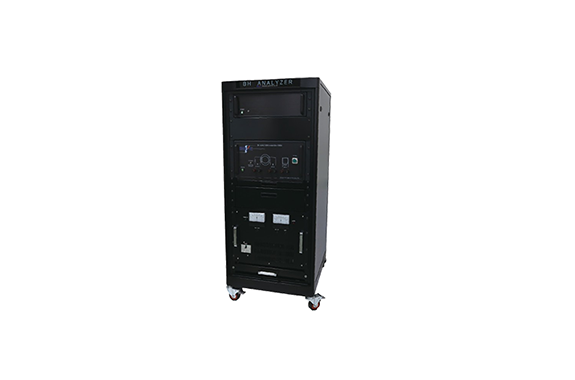

EMIC BH-1000H BH Analyzer For Hard Materials
Manufacturer: Electronic Magnetic Industry Co., Ltd.
Model: BH-1000H
Features
- Wide range of measurements from micro-cores to permanent magnets
- 10 times the number of samples used for high-resolution measurements
- It is possible to measure without choosing an electromagnet.
- (Depends on power supply specifications)
- By providing a protection circuit, it is safe and secure even in the event of miswiring.
Specifications
| Measurement department | Measurement modeMeasurement itemMeasurement accuracymeasurement rateInputPower supply | DC Magnetization Characteristics High Coercive Force Material Degaussing Properties (BH) max: Maximum Energy Product, HK/Hcj: Square Ratio, Hk (% configurable), etc. B Measurement ±1% 50μV H Measurement ±1%±50μV + Hall Probe Accuracy (Max±1%-2T~2T) ±10V 24bit 100μsec AC100V±10% 50/60Hz |
| Excitation power supply unit | Maximum Output (Optional) Input Power (Optional) | ±40V/±15A or ±60V/±30A ±40V/±15A AC100V±10% 50/60Hz Max 1.4kVA ±60V/±30A AC100V or AC200V±10% 50/60Hz Max 2.5kVA or 3.0kVA |
| mass | Approx. 210kg | |
| Operating temperature range | 5～35℃ | |
| accessory | Laptop (with dedicated software), mouse |
