Electronic Magnetic Industry Co.

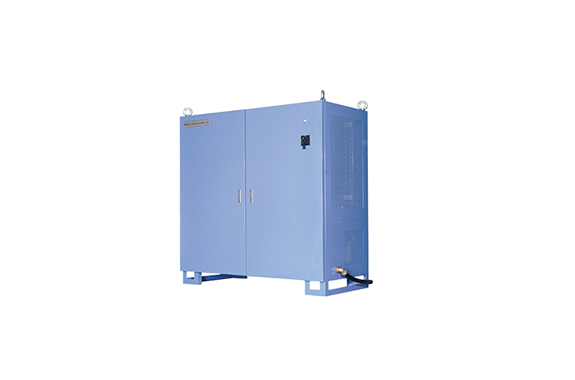

EMIC ES-45100-30 Magnetized Power supply for EV and HEV
Manufacturer: Electronic Magnetic Industry Co., Ltd.
Model: ES-45100-30
Features
Charging voltage up to 4500V. The latest control circuit for magnetization of highly coercive magnets.
We combine strong safety performance with high power capacity, and we create a compact structure by arranging the internal components efficiently and applying a space-saving design.
Specifications
| Model | ES-4550-30 | ES-4570-30 | ES-4580-30 | ES-45100-30 |
| Input Power Supply | Single-phase AC200V 50/60Hz Approx. 75A | Single-phase AC200V 50/60Hz Approx. 75A | Single-phase AC200V 50/60Hz Approx. 75A | Single-phase AC200V 50/60Hz approx. 100A |
| Maximum allowable output current | 30,000A | |||
| Charging voltage | DC200～4, 500V | |||
| Charging time | 20 seconds | 25 seconds | 25 seconds | 30 seconds |
| Capacitor capacity | 5,000μF | 7,000μF | 8,000μF | 10,000μF |
| Power-up time | Approx. 400 μsec or more (varies with load) | |||
| Main control element | SCR | |||
| Dimensions (power supply body) (mm) | 1,100W×1,400D×1,500H | 1,600W×1,900D×1,800H | 1,600W×2,000D×2,000H | 1,600W×2,300D×2,000H |
| mass | Approx.1,100kg | Approx.1,500 kg | Approx.1,800kg | Approx.2300kg |
