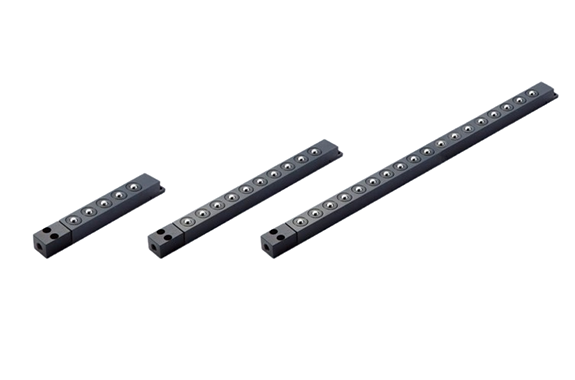

Freebear AFU-2525

Freebear AFU-2525

Manufacturer: Freebear Corporation Ltd.
Model: AFU-2525

Features

By supplying compressed air, the freebears built in individual pistons rise simultaneously.
By processing a square groove on the machine bed at the time of mounting, it is possible to convey and position jigs, molds and workpieces.

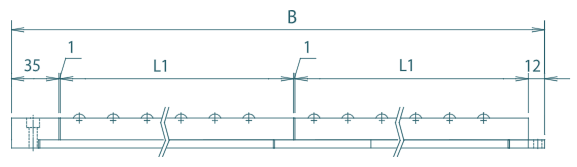

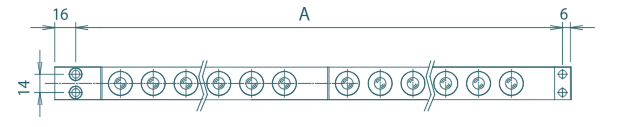

A＝25＋（Sum of L1）＋（Number of connections）

B＝47＋（Sum of L1）＋（Number of connections）

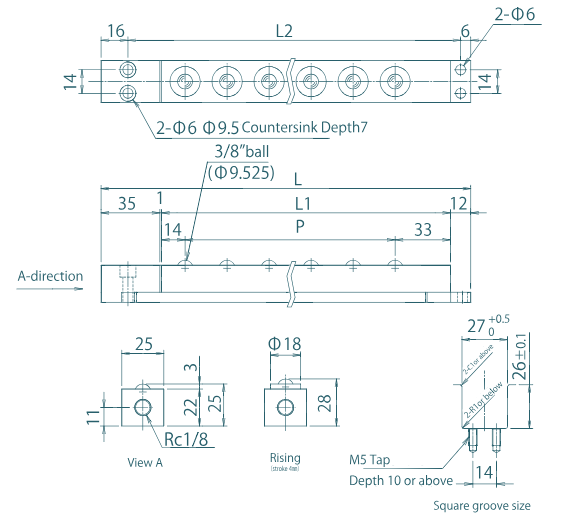

Model	Body size（mm）				Weight	Operating air pressure
	L	L1	L2	P	kg	0.3MPa		0.4MPa		0.5MPa		0.6MPa
						Load capacity
						kN	kgf	kN	kgf	kN	kgf	kN	kgf
AFU-2525-1	95	47	73	–	0.3	0.07	7.2	0.09	9.2	0.12	12.3	0.14	14.3
AFU-2525-2	120	72	98	25	0.4	0.14	14.3	0.18	18.4	0.24	24.6	0.28	28.6
AFU-2525-3	145	97	123	2×P25=50	0.5	0.21	21.5	0.27	27.6	0.36	36.9	0.42	42.9
AFU-2525-4	170	122	148	3×P25=75	0.6	0.28	28.6	0.36	36.8	0.48	49.2	0.56	57.2
AFU-2525-5	195	147	173	4×P25=100	0.7	0.35	35.8	0.45	46.0	0.60	61.5	0.70	71.5
AFU-2525-6	220	172	198	5×P25=125	0.8	0.42	42.9	0.54	55.2	0.72	73.8	0.84	85.8
AFU-2525-7	245	197	223	6×P25=150	0.9	0.49	50.1	0.63	64.4	0.84	86.1	0.98	100.1
AFU-2525-8	270	222	248	7×P25=175	1.0	0.56	57.2	0.72	73.6	0.96	98.4	1.12	114.4
AFU-2525-9	295	247	273	8×P25=200	1.1	0.63	64.4	0.81	82.8	1.08	110.7	1.26	128.7
AFU-2525-10	320	272	298	9×P25=225	1.2	0.70	71.5	0.90	92.0	1.20	123.0	1.40	143.0
AFU-2525-11	345	297	323	10×P25=250	1.3	0.77	78.7	0.99	101.2	1.32	135.3	1.54	157.3
AFU-2525-12	370	322	348	11×P25=275	1.4	0.84	85.8	1.08	110.4	1.44	147.6	1.68	171.6
AFU-2525-13	395	347	373	12×P25=300	1.5	0.91	93.0	1.17	119.6	1.56	159.9	1.82	185.9
AFU-2525-14	420	372	398	13×P25=325	1.6	0.98	100.1	1.26	128.8	1.68	172.2	1.96	200.2
AFU-2525-15	445	397	423	14×P25=350	1.7	1.05	107.3	1.35	138.0	1.80	184.5	2.10	214.5
AFU-2525-16	470	422	448	15×P25=375	1.8	1.12	114.4	1.44	147.2	1.92	196.8	2.24	228.8
AFU-2525-17	495	447	473	16×P25=400	1.9	1.19	121.6	1.53	156.4	2.04	209.1	2.38	243.1
AFU-2525-18	520	472	498	17×P25=425	2.0	1.26	128.5	1.62	165.2	2.16	220.3	2.52	257.0
One freebear						0.07	7.2	0.09	9.2	0.12	12.3	0.14	14.3
