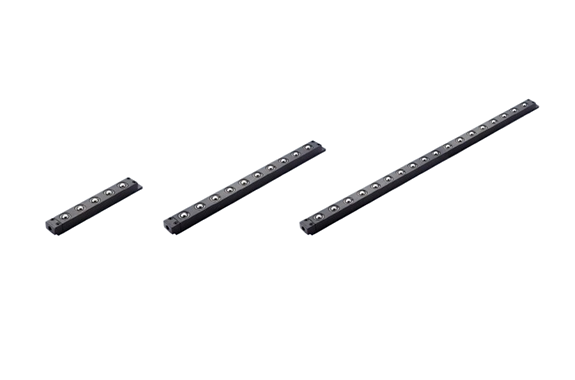

Freebear AFU-3836
Manufacturer: Freebear Corporation Ltd.
Model: AFU-3836
Features
- By supplying compressed air, the freebears built in individual pistons rise simultaneously.
By processing a square groove on the machine bed at the time of mounting, it is possible to convey and position jigs, molds and workpieces.
Specifications

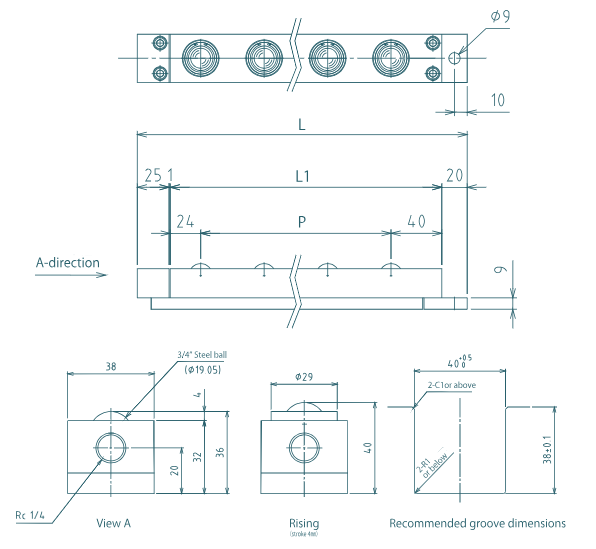

Connection dimension diagram

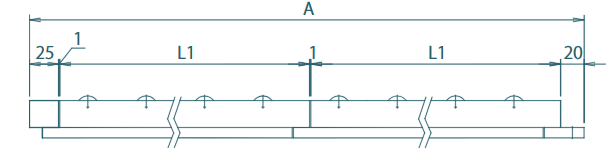

Calculation formula of full length A=45+（Sum of L1）+（Number of connections）
Unit：mm
| Model | Body size（mm） | Weight | Operating air pressure | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | L1 | P | kg | 0.3MPa | 0.4MPa | 0.5MPa | 0.6MPa | |||||
| Load capacity | ||||||||||||
| kN | kgf | kN | kgf | kN | kgf | kN | kgf | |||||
| AFU-3836-1 | 110 | 64 | – | 0.8 | 0.20 | 19.90 | 0.24 | 24.50 | 0.31 | 31.60 | 0.39 | 39.80 |
| AFU-3836-2 | 160 | 114 | 50 | 1.2 | 0.39 | 39.80 | 0.48 | 48.90 | 0.62 | 63.20 | 0.78 | 79.50 |
| AFU-3836-3 | 210 | 164 | 2×P50=100 | 1.7 | 0.59 | 59.70 | 0.72 | 73.40 | 0.93 | 94.80 | 1.17 | 119.30 |
| AFU-3836-4 | 260 | 214 | 3×P50=150 | 2.1 | 0.78 | 79.60 | 0.96 | 97.90 | 1.24 | 126.40 | 1.56 | 159.10 |
| AFU-3836-5 | 310 | 264 | 4×P50=200 | 2.5 | 0.98 | 99.40 | 1.20 | 122.40 | 1.55 | 158.10 | 1.95 | 198.80 |
| AFU-3836-6 | 360 | 314 | 5×P50=250 | 3.0 | 1.17 | 119.30 | 1.44 | 146.80 | 1.86 | 189.70 | 2.34 | 238.60 |
| AFU-3836-7 | 410 | 364 | 6×P50=300 | 3.4 | 1.37 | 139.20 | 1.68 | 171.30 | 2.17 | 221.30 | 2.73 | 278.40 |
| AFU-3836-8 | 460 | 414 | 7×P50=350 | 3.8 | 1.56 | 159.10 | 1.92 | 195.80 | 2.48 | 252.90 | 3.12 | 318.20 |
| AFU-3836-9 | 510 | 464 | 8×P50=400 | 4.3 | 1.76 | 179.00 | 2.16 | 220.30 | 2.79 | 284.50 | 3.51 | 357.90 |
| AFU-3836-10 | 560 | 514 | 9×P50=450 | 4.7 | 1.95 | 198.90 | 2.40 | 244.70 | 3.10 | 316.10 | 3.90 | 397.70 |
| AFU-3836-11 | 610 | 564 | 10×P50=500 | 5.1 | 2.15 | 218.80 | 2.64 | 269.20 | 3.41 | 347.70 | 4.29 | 437.50 |
| AFU-3836-12 | 660 | 614 | 11×P50=550 | 5.5 | 2.34 | 238.60 | 2.88 | 293.70 | 3.72 | 379.30 | 4.68 | 477.20 |
| AFU-3836-13 | 710 | 664 | 12×P50=600 | 6.0 | 2.54 | 258.50 | 3.12 | 318.20 | 4.03 | 411.00 | 5.07 | 517.00 |
| AFU-3836-14 | 760 | 714 | 13×P50=650 | 6.4 | 2.73 | 278.40 | 3.36 | 342.60 | 4.34 | 442.60 | 5.46 | 556.80 |
| AFU-3836-15 | 810 | 764 | 14×P50=700 | 6.8 | 2.93 | 298.30 | 3.60 | 367.10 | 4.65 | 474.20 | 5.85 | 596.50 |
| AFU-3836-16 | 860 | 814 | 15×P50=750 | 7.3 | 3.12 | 318.20 | 3.84 | 391.60 | 4.96 | 505.80 | 6.24 | 636.30 |
| AFU-3836-17 | 910 | 864 | 16×P50=800 | 7.7 | 3.32 | 338.10 | 4.08 | 416.00 | 5.27 | 537.40 | 6.63 | 676.10 |
| AFU-3836-18 | 960 | 914 | 17×P50=850 | 8.1 | 3.51 | 357.90 | 4.32 | 440.50 | 5.58 | 569.00 | 7.02 | 715.80 |
| One freebear | 0.20 | 19.90 | 0.24 | 24.50 | 0.31 | 31.60 | 0.39 | 39.80 | ||||
