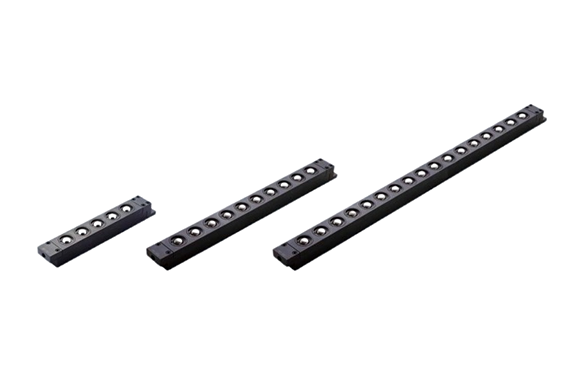

Freebear AFU-5050W Series
Manufacturer: Freebear Corporation Ltd.
Model: AFU-5050W Series
Features
- By supplying compressed air, the freebears built in individual pistons rise simultaneously.
By processing a square groove on the machine bed at the time of mounting, it is possible to convey and position jigs, molds and workpieces.

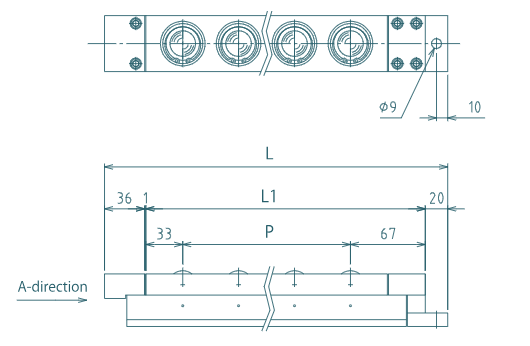

Specifications

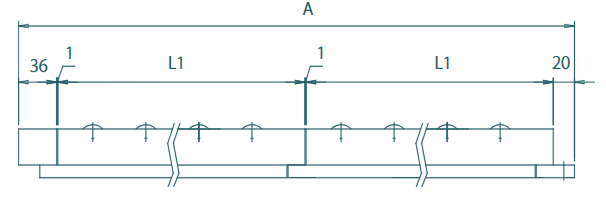

Connection dimension diagram
- Calculation formula of full length A＝56＋（Sum of L1）＋（Number of connections）
Unit：mm
| Model | Body size（mm） | Weight | Operating air pressure | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | L1 | P | kg | 0.3MPa | 0.4MPa | 0.5MPa | 0.6MPa | |||||
| Load capacity | ||||||||||||
| kN | kgf | kN | kgf | kN | kgf | kN | kgf | |||||
| AFU-5050W-1 | 157 | 100 | – | 2.1 | 0.77 | 78.00 | 1.02 | 104.00 | 1.28 | 130.50 | 1.53 | 156.00 |
| AFU-5050W-2 | 207 | 150 | 50 | 2.9 | 1.53 | 156.00 | 2.04 | 208.00 | 2.56 | 261.00 | 3.06 | 312.00 |
| AFU-5050W-3 | 257 | 200 | 2×P50=100 | 3.6 | 2.30 | 234.00 | 3.06 | 312.00 | 3.84 | 391.60 | 4.59 | 468.00 |
| AFU-5050W-4 | 307 | 250 | 3×P50=150 | 4.4 | 3.06 | 312.10 | 4.08 | 416.00 | 5.12 | 522.10 | 6.12 | 624.10 |
| AFU-5050W-5 | 357 | 300 | 4×P50=200 | 5.2 | 3.83 | 390.10 | 5.10 | 520.10 | 6.40 | 652.60 | 7.65 | 780.10 |
| AFU-5050W-6 | 407 | 350 | 5×P50=250 | 5.9 | 4.59 | 468.10 | 6.12 | 624.10 | 7.68 | 783.10 | 9.18 | 936.10 |
| AFU-5050W-7 | 457 | 400 | 6×P50=300 | 6.6 | 5.36 | 546.10 | 7.14 | 728.10 | 8.96 | 913.70 | 10.71 | 1092.10 |
| AFU-5050W-8 | 507 | 450 | 7×P50=350 | 7.4 | 6.12 | 624.10 | 8.16 | 832.10 | 10.24 | 1044.20 | 12.24 | 1248.10 |
| AFU-5050W-9 | 557 | 500 | 8×P50=400 | 8.1 | 6.89 | 702.00 | 9.18 | 936.10 | 11.52 | 1174.70 | 13.77 | 1404.00 |
| AFU-5050W-10 | 607 | 550 | 9×P50=450 | 8.9 | 7.65 | 780.10 | 10.20 | 1040.10 | 12.80 | 1305.20 | 15.30 | 1560.20 |
| AFU-5050W-11 | 657 | 600 | 10×P50=500 | 9.7 | 8.42 | 858.10 | 11.22 | 1144.10 | 14.08 | 1435.80 | 16.83 | 1716.20 |
| AFU-5050W-12 | 707 | 650 | 11×P50=550 | 10.4 | 9.18 | 936.10 | 12.24 | 1248.10 | 15.36 | 1566.30 | 18.36 | 1872.10 |
| AFU-5050W-13 | 757 | 700 | 12×P50=600 | 11.2 | 9.95 | 1014.10 | 13.26 | 1352.10 | 16.64 | 1696.80 | 19.89 | 2028.20 |
| AFU-5050W-14 | 807 | 750 | 13×P50=650 | 12.0 | 10.71 | 1092.10 | 14.28 | 1456.10 | 17.92 | 1827.30 | 21.42 | 2184.20 |
| AFU-5050W-15 | 857 | 800 | 14×P50=700 | 12.7 | 11.48 | 1170.10 | 15.30 | 1560.20 | 19.20 | 1957.80 | 22.95 | 2340.20 |
| AFU-5050W-16 | 907 | 850 | 15×P50=750 | 13.5 | 12.24 | 1248.20 | 16.32 | 1664.20 | 20.48 | 2088.40 | 24.48 | 2496.30 |
| AFU-5050W-17 | 957 | 900 | 16×P50=800 | 14.2 | 13.01 | 1326.20 | 17.34 | 1768.20 | 21.76 | 2218.90 | 26.01 | 2652.30 |
| AFU-5050W-18 | 1007 | 950 | 17×P50=850 | 15.0 | 13.77 | 1404.20 | 18.36 | 1872.20 | 23.04 | 2349.40 | 27.54 | 2808.30 |
| One freebear | 0.77 | 78.00 | 1.02 | 104.00 | 1.28 | 130.50 | 1.53 | 156.00 | ||||
