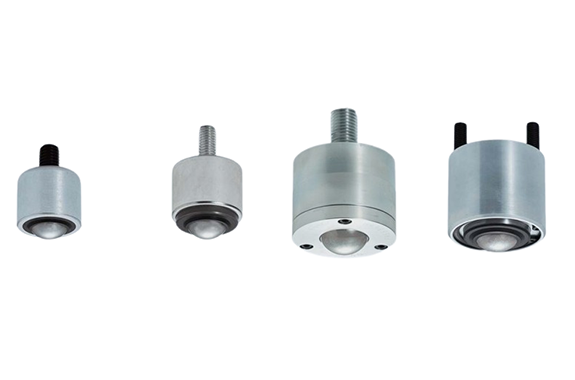

Freebear D-Type Bolt
Manufacturer: Freebear Corporation Ltd.
Model: D-Type Bolt
Specifications
Unit：mm

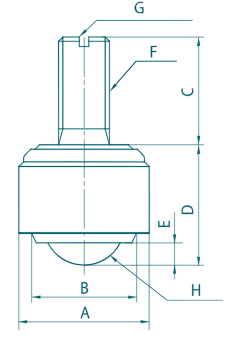

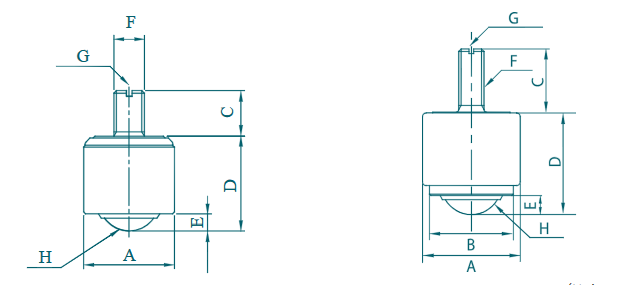

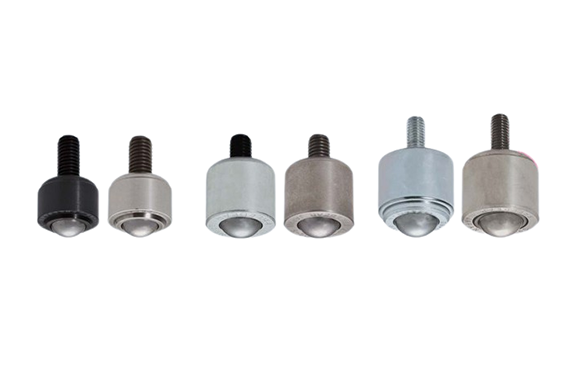

| Model | Allowable load | Max. load | Main ball | Small ball | Body | Weight | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C-4D | 10kg | 20kg | Steel | Steel | Steel | 38g | ∅20.5 | ∅16.5 | 17 | 19 | 3.5 | M8 | Width1.5×Depth1.5 | 1/2″ Ball(∅12.70) |
| S-4D | 10kg | 20kg | SUS | SUS | SUS | 36g | ∅20.5 | ∅16.5 | 15 | 19 | 3.5 | M8 | Width1.5×Depth1.5 | 1/2″ Ball(∅12.70) |
| C-5D | 20kg | 40kg | Steel | Steel | Steel | 69g | ∅24 | – | 12 | 25 | 4 | M8 | Width1.5×Depth1.5 | 5/8″ Ball(∅15.875) |
| S-5D | 20kg | 40kg | SUS | SUS | SUS | 69g | ∅24 | – | 12 | 25 | 4 | M8 | Width1.5×Depth1.5 | 5/8″ Ball(∅15.875) |
| C-6D | 50kg | 100kg | Steel | Steel | Steel | 144g | ∅31 | ∅26.6 | 20 | 32.5 | 6 | M8 | Width1.5×Depth1.5 | 3/4″ Ball(∅19.05) |
| S-6D | 50kg | 100kg | SUS | SUS | SUS | 144g | ∅31 | – | 20 | 32.5 | 6 | M8 | Width1.5×Depth1.5 | 3/4″ Ball(∅19.05) |
Unit：mm
| Model | Allowable load | Max. load | Main ball | Small ball | Body | Weight | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C-5DR | 20kg | 40kg | Steel | Steel | Steel | 67g | ∅24 | – | 12 | 25 | 4.5 | M8 | Width1.5×Depth1.5 | 5/8″ Ball(∅15.875) |
| C-6DR | 50kg | 100kg | Steel | Steel | Steel | 142g | ∅31 | ∅26.6 | 20 | 32.5 | 6.0 | M8 | Width1.5×Depth1.5 | 3/4″ Ball(∅19.05) |

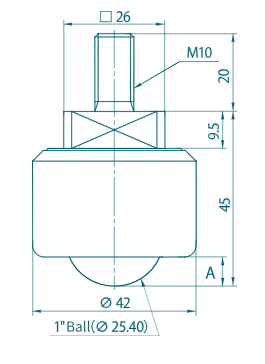

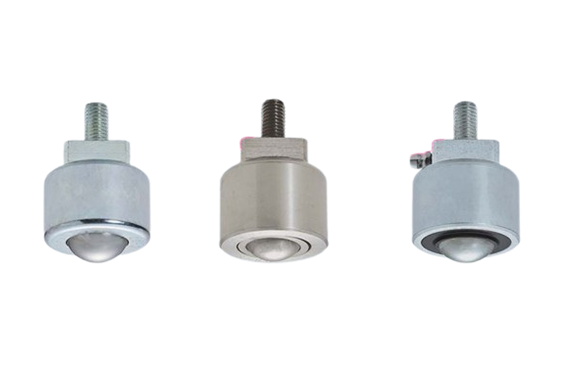

Unit：mm
| Model | Allowable load | Max. load | Main ball | Small ball | Body | A | Weight |
|---|---|---|---|---|---|---|---|
| C-8D | 80kg | 160kg | Steel | Steel | Steel | 7.5 | 332g |
| S-8D | 80kg | 160kg | SUS | SUS | SUS | 5 | 327g |
| C-8DA | 80kg | 160kg | Steel | Steel | Steel | 7.5 | 309g |

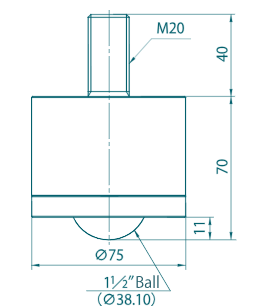

Unit：mm
| Model | Allowable load | Max. load | Main ball | Small ball | Body | Weight |
|---|---|---|---|---|---|---|
| C-12HD | 200kg | 400kg | Steel | Steel | Steel | 2000g |
※Product specifications are subject to change without prior notice. Please contact us for details.
※For materials not contained herein, please contact us.
※The main ball of the stainless steel products contained herein is made of SUS440C.Please consult us for rust prevention purposes.

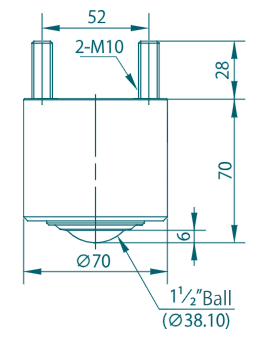

Unit：mm
| Model | Allowable load | Max. load | Main ball | Small ball | Body | Weight |
|---|---|---|---|---|---|---|
| C-12HDR | 200kg | 400kg | Steel | Steel | Steel | 1684g |
