Freebear
Freebear L-5/L-6-Type
Manufacturer: Freebear Corporation Ltd.
Model: L-5/L-6-Type
Features
- Press-molded products can increase mounting height at a low cost (L-6 type).
Specifications
Unit：mm

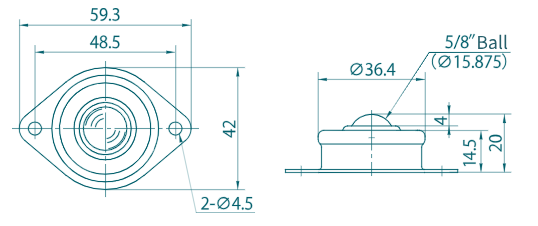

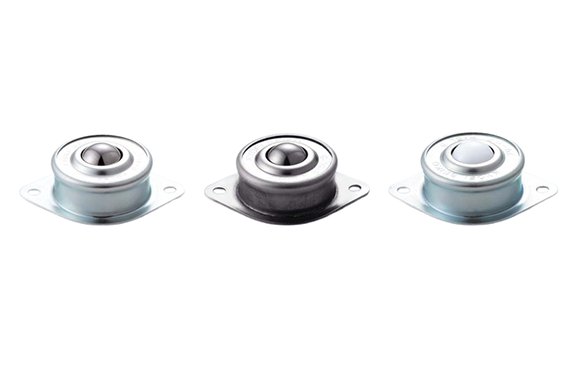

| Model | Allowable load | Max. load | Main ball | Small ball | Body | Ball seat | Weight |
|---|---|---|---|---|---|---|---|
| C-5L-5 | 8kg | 16kg | Steel | Steel | Steel | SUS | 53g |
| S-5L-5 | 8kg | 16kg | SUS | SUS | SUS | SUS | 55g |
| P-5L-5 | 2kg | – | Nylon | SUS | Steel | SUS | 39g |
Unit：mm

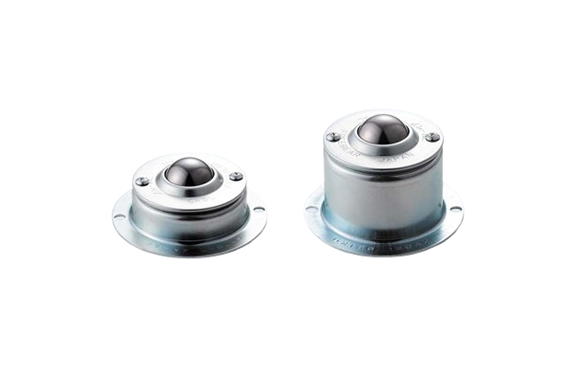

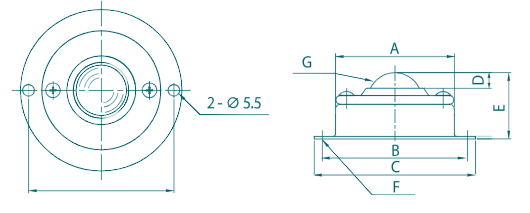

| Model | Allowable load | Max. load | Main ball | Small ball | Body | Ball seat | Weight | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C-8L-5 | 30kg | 60kg | Steel | Steel | Steel | SUS | 181g | ∅56 | 68.5 | ∅76 | 7.3 | 31 | 2-∅5.5 | 1″ Ball(∅25.40) |
| C-8L-6 | 30kg | 60kg | Steel | Steel | Steel | SUS | 206g | ∅56 | 68.5 | ∅76 | 7.3 | 51 | 2-∅5.5 | 1″ Ball(∅25.40) |
※The weight of single conveyance object shall not exceed 1000 kg.
※Product specifications are subject to change without prior notice. Please contact us for details.
※For materials not contained herein, please contact us.
※The main ball of the stainless steel products contained herein is made of SUS440C.Please consult us for rust prevention purposes.
