Fukada Kogyo Co.,Ltd.
Fukada Kogyo CD-V Foaming Machine
Manufacturer: Fukada Kogyo Co.,Ltd.
Model: CD-V
Features

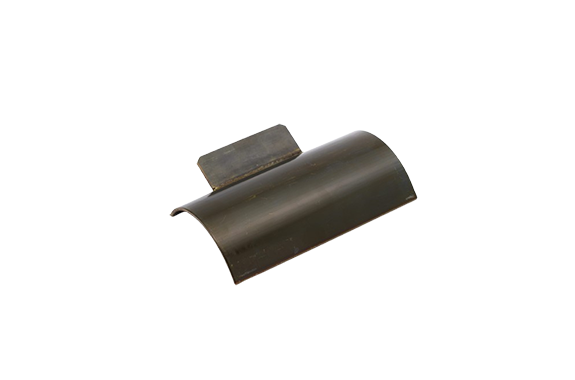

| Overview | The CD type foam deflector is a deflector (foam reflector) used for fixed roof tanks, and is attached to the air foam chamber. It allows the foam released from the air foam chamber to flow down along the inner side wall of the tank, smoothly spreading the foam without stirring the surface of the flammable liquid, thereby extinguishing the fire. |
|---|---|
| Format | CD-*V CD-*VW |
Specifications

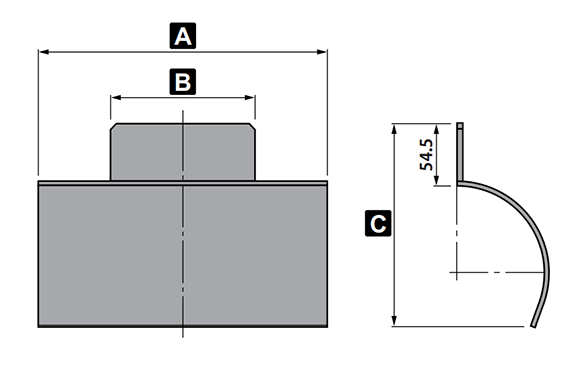

| Model Type | A [mm] | B [mm] | C [mm] | Remarks |
|---|---|---|---|---|
| CD-200V-W | 200 | 100 | 152 | MAF-200V |
| CD-350V-W | 250 | 125 | 174 | MAF-350V |
| CD-550V-W | 300 | 150 | 204 | MAF-550V |
| CD-750V-W | 300 | 150 | 204 | MAF-750V |
| CD-1000V-W | 450 | 225 | 279 | MAF-1000V |
| CD-1400V-W | 450 | 225 | 279 | MAF-1400V |
| CD-1900V-W | 600 | 300 | 354 | MAF-1900V |
