Fukada Kogyo Co.,Ltd.

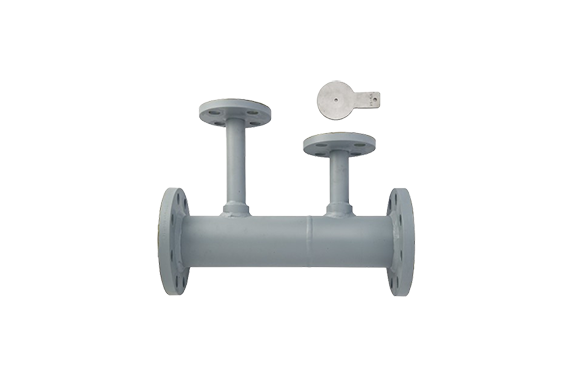

Fukada Kogyo Q Foaming Machine
Manufacturer: Fukada Kogyo Co.,Ltd.
Model: Q
Features

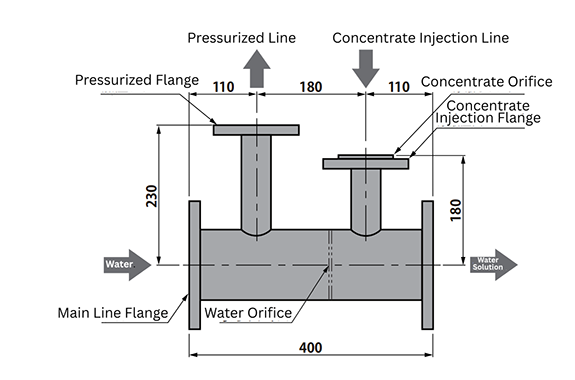

| Overview | This is an orifice-type proportional mixer used in pressure proportioner type mixing equipment, and functions to ensure that the mixing ratio of fire water and foam fire extinguishing agent is always constant. |
|---|---|
| Format | Q* |
Specifications
| Model | Appropriate Mixing Flow Range [L/min] | Maximum Pressure Loss [MPa] | Connecting Flange Size |
| Q200 | 100~400 | 0.2 | Main Pipe: 50A, 25A |
| Q400 | 200~800 | 0.2 | Main Pipe: 80A, 25A |
| Q800 | 400~1600 | 0.2 | Main Pipe: 100A, 40A |
| Q1600 | 800~3200 | 0.2 | Main Pipe: 150A, 50A |
| Q2000 | 1000~4000 | 0.2 | Main Pipe: 150A, 50A |
