Fukada SH Water Fire Extinguishing Equipment
Manufacturer: Fukada Kogyo Co.,Ltd.
Model: SH
Features

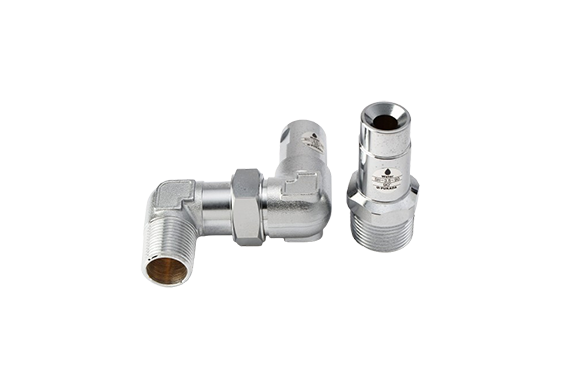

| Overview | The SH-type spray head collides a straight flow with a swirling flow inside the nozzle, forming a spray with a full cone pattern, and is used for cooling water sprinkler equipment, etc. There are straight types and elbow types that can spray in any direction. |
|---|---|
| Format | SH-* |

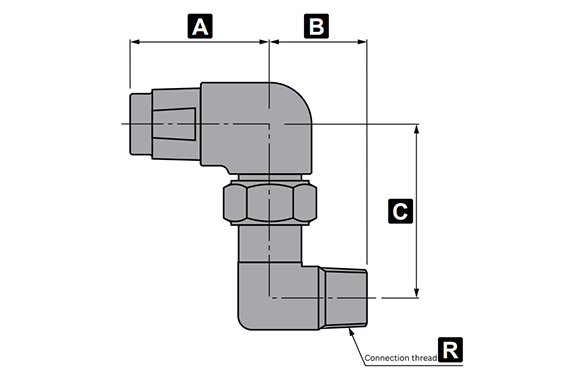

| Model | Pressure [MPa] | Flow rate [L/min] | Spray angle [°] | Dimensions [mm] | Connection thread | ||
|---|---|---|---|---|---|---|---|
| A | B | C | R | ||||
| SH-2-22-90°-4 | 0.2 | 22 | 90 | 50.5 | 35 | 63 | R1/2 |
| SH-2-22-120°-4 | 0.2 | 22 | 120 | 58 | 35 | 63 | |
| SH-3.5-20-90°-4 | 0.35 | 20 | 90 | 50.5 | 35 | 63 | |
| SH-3.5-30-90°-4 | 0.35 | 30 | 90 | 50.5 | 35 | 63 | |
| SH-3.5-20-120°-4 | 0.35 | 20 | 120 | 58 | 35 | 63 | |
| SH-3.5-30-120°-4 | 0.35 | 30 | 120 | 58 | 35 | 63 | |
| SH-3.5-45-60°-6 | 0.35 | 45 | 60 | 51 | 40 | 67 | R3/4 |
| SH-3.5-70-60°-6 | 0.35 | 70 | 60 | 59 | 40 | 67 | |
| SH-3.5-90-60°-6 | 0.35 | 90 | 60 | 67 | 40 | 67 | |
| SH-3.5-45-90°-6 | 0.35 | 45 | 90 | 51 | 40 | 67 | |
| SH-3.5-70-90°-6 | 0.35 | 70 | 90 | 59 | 40 | 67 | |
| SH-3.5-90-90°-6 | 0.35 | 90 | 90 | 67 | 40 | 67 | |
| SH-3.5-45-120°-6 | 0.35 | 45 | 120 | 61 | 40 | 67 | |
| SH-3.5-70-120°-6 | 0.35 | 70 | 120 | 65 | 40 | 67 | |
| SH-3.5-90-120°-6 | 0.35 | 90 | 120 | 70 | 40 | 67 | |

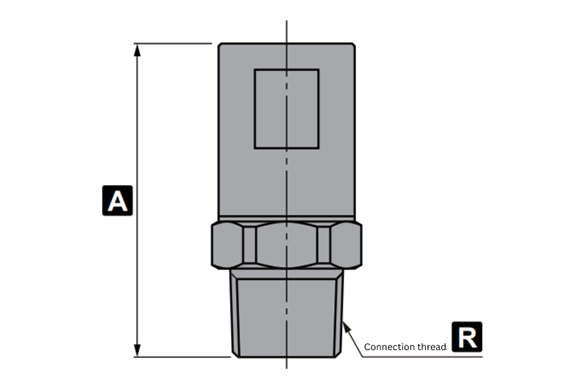

| Model | Pressure [MPa] | Flow rate [L/min] | Spray angle [°] | Dimensions [mm] | Connection thread |
|---|---|---|---|---|---|
| A | R | ||||
| SH-2-22-120°-4S | 0.2 | 22 | 120 | 60 | R1/2 |
| SH-3.5-30-90°-4S | 0.35 | 30 | 90 | 52.5 | |
| SH-3.5-30-120°-4S | 0.35 | 30 | 120 | 60 | |
| SH-3.5-45-90°-6S | 0.35 | 45 | 90 | 59 | R3/4 |
| SH-3.5-45-120°-6S | 0.35 | 45 | 120 | 66 | |
| SH-3.5-70-90°-8S | 0.35 | 70 | 90 | 67 | R1 |
| SH-3.5-90-90°-8S | 0.35 | 90 | 90 | 75 | |
| SH-3.5-70-120°-8S | 0.35 | 70 | 120 | 73 | |
| SH-3.5-90-120°-8S | 0.35 | 90 | 120 | 81 |
