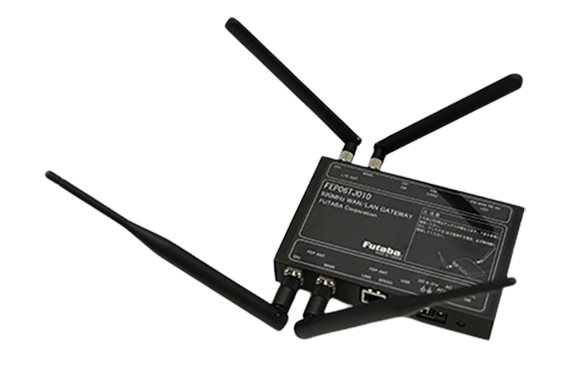

Futaba FEP-06 Wireless Gateway

Manufacture: Futaba Corporation
Model: FEP-06
Features
Eight major features of FEP-06
- ARIB STD-T108 compliant, no license application required
- Can communicate with FEP series
- Soracom Inc. certified device registered
- Compatible with “SORACOM AirSIM” *
- Compatible with “SORACOM Unified Endpoint” * and “SORACOM Napter” *
- Multi-channel access prevents interference
- Wireless speed can be selected according to the application
- Equipped with transmit/receive diversity and repeater functions
*: Registered trademark or trademark of Soracom Inc.
Main uses
- IoT/M2M systems (infrastructure monitoring, agriculture, fisheries, industry, surveying)
- Energy monitoring (HEMS, BEMS, demand monitoring devices)
Description
The wireless gateway FEP-06 incorporates our 920MHz band wireless module FEP-01, and is a wireless gateway that enables use of various services from Soracom Inc. via the mobile phone network.
Due to the characteristics of radio wave propagation, the 920MHz band is less affected by obstacles than the 2.4GHz band, and is therefore attracting attention as a frequency band that allows stable communication over long distances.The FEP-06 makes it easy to upload data acquired with our FEP series to the cloud.
The FEP-06 is capable of larger capacity and more stable data communication than general LPWA products.
wireless speed | Maximum Data Length | Service Area |
---|---|---|
50kbps | 128 bytes | 1.2km (line of sight) L-band |
1.2kbps | 32 bytes | 3km (line of sight) L-band |
Main specifications
*Product specifications are subject to change without notice.
technical standards | ARIB STD-T108 |
---|---|
Radio wave format | FID |
Radio frequency band | 920.6-927.8MHz (L band) 928.15-929.65MHz (H band) |
Frequency Channel | 37 channels (L band) 16 channels (H band) |
Data Modulation Rate | 50kbps (L band) 1.2kbps (L band) 38.4kbps (H band) |
Antenna Power | 20mW (L band) 0.8mW (H band) |
Communication distance | Outdoor line of sight: 50 kbps 1.2 km (L band), 1.2 kbps 3 km (L band), 38.4 kbps 300 m (H band) |
Maximum Data Length | 50kbps 128 bytes 1.2kbps 32 bytes |
antenna | Transmit/receive diversity function |
Relay function | Yes (up to 2 levels) |
Communication method | Simplex communication method |
Communication type | 1:1, 1:N, N:M |
Error correction function | Automatic error detection and automatic retransmission |
Interface | Ethernet (RJ45) Micro USB |
Power supply voltage | DC6 to 31V |
Current consumption | 400mA or less (VCC=6V) 200mA or less (VCC=12V) 100mA or less (VCC=24V) 80mA or less (VCC=31V) |
Operating temperature | -20 to +60°C |
External dimensions | 145(W) x 96(D) x 27(H)mm (excluding protrusions) |
weight | Approximately 225g |
*1 When using a 1/2λ antenna. This value may vary depending on the surrounding environment and installation environment.
