Manufacture: Futaba Corporation
Model: FRP-0601

Features

Eight major features of FRP-0601

1. Our proprietary correlation decoding method (SS method technology application) ensures high noise resistance.
2. The 429MHz band specific low-power radio enables wireless ON/OFF control of devices up to approximately 150m away *1
3. Two-material molding with elastomer is used to significantly improve drop resistance
4. The transmitter is waterproof for everyday use so that it can withstand work in the rain.
5. Waterproof receiver available for outdoor installation
6. Equipped with a power-on failsafe function to prevent malfunctions when the transmitter is turned on
7. Long battery life of 15 hours with three AAA alkaline batteries
8. No license required as it complies with the Radio Law and is a specific low-power device.

*1 Waterproof receivers have a built-in receiving antenna, so the communication distance is approximately 80m.

Main uses

• Control of various hydraulic equipment in specially equipped vehicles
• ON/OFF control for various civil engineering and construction machinery
• Winch winding and unwinding work
• Remote control of welfare vehicles and agricultural equipment

Description

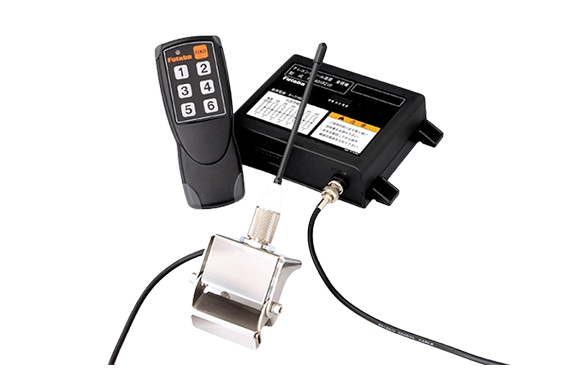

The FRP-0601 is a low-power wireless remote control operating on the 429MHz band, designed for controlling various industrial equipment. It replaces the FRL-0601 and FRM-0202 models. The transmitter features a new ergonomic design, prioritizing ease of use and comfort while offering excellent operability. It’s lightweight, with a two-material elastomer molding for improved drop resistance, and includes an embossed operation label for better usability.

Two receiver types are available: a non-waterproof version with an external antenna and a waterproof version with a built-in antenna, eliminating the need for antenna installation. The non-waterproof receiver has the same dimensions and mounting specifications as the FRL-0601, allowing for seamless integration into existing setups.

The FRP-0601 retains key features from previous models, including our proprietary correlation decoding (using spread spectrum technology for high-quality communication), auto power-off (to prevent leaving the transmitter on), power-on fail-safe (to prevent malfunctions), periodic function (which stops transmission 4 seconds after the switch is released), and a waterproof transmitter for use in rain.

With stable wireless operation over 150m (non-waterproof) and a communication distance of approximately 80m for the waterproof receiver, the FRP-0601 is available in 12 configurations, including 2, 4, or 6-point transmitters, two output types (common or independent relay), and waterproof or non-waterproof designs.

Transmitter/receiver common specifications

*Product specifications are subject to change without notice.

technical standards	ARIB STD-T67
Carrier Frequency	429.2500-429.7375MHz (12.5kHz separation, 40 waves) The 40 waves are divided into 10 groups, and one system automatically selects one of the four waves.
Communication method	One-way communication method
Transmission method	Correlation decoding method *
Communication distance	150m or more (non-waterproof receiver, according to our measurement method) 80m or more (waterproof receiver, according to our measurement method)
Response speed	Approximately 600msec, approximately 130msec in standby mode , when pressed again within approximately 3 seconds
Identification code	ID code 16 bits (65,536 ways)
Operating temperature range	-20 to +60°C
Operating humidity range	90% RH or less (no condensation)
Shock resistance	When de-energized: JIS C 60068-2-27 (peak acceleration 500m/s², action　time 11ms)

*The correlation decoding method is a method with excellent noise resistance that applies our proprietary spectrum spread technology.

Transmitter Specifications

Antenna Power	10mW
Carrier Sense function	The antenna has an absolute gain of 2.14 dBi and detects no radio waves when the signal is below 7 μV. If the antenna detects radio waves from other stations before transmitting, it will automatically switch to another channel (frequency).
Modulation method	FSK FM (radio wave format F1D)
power supply	Three AAA batteries (alkaline batteries recommended)
battery life	Continuous operation: Approximately 15 hours (at room temperature, using new alkaline batteries)
Indicator lamp	1 x 2-color LED Green (normal operating voltage) Red (battery replacement required)
Auto power off function	Power automatically turns off after 30 minutes of inactivity
Periodic Function	To extend battery life, transmission stops approximately 3 seconds after the control switch is released.
switch	Power switch: 1 push-button momentary switch Operation switch: 6 push-button momentary switches
antenna	Built-in
structure	Waterproof for everyday use (JIS D 0203-1994 water spray test R1)
Drop strength	The product has been dropped from a height of 1.5m onto a concrete surface, and normal operation has been confirmed after the test (however, this does not guarantee that the product will continue to function normally or be free of malfunctions after being dropped).
Vibration resistance	Non-energized JIS D 1601-1995 Type 3, Type B, Level 45 (Vibration frequency classification 100)
Case Material	Resin (black) Elastomer (gray)
External dimensions	147(L) x 59(W) x 24(H)mm (excluding protrusions)
weight	Approximately 140g (including battery, approximately 35g)
Malfunction prevention function	Power-on fail-safe function

Receiver specifications (non-waterproof type)

Reception sensitivity	1.0μV or less (-107dBm or less)
Reception method	Double Superheterodyne
Malfunction prevention method	CRC error detection method, identification between devices by ID code
operation	ON/OFF momentary operation (6 channels can be operated simultaneously)
Operation Channel Output	Relay open/close type (a contact) power supply voltage output type (FRP-0601) *Fig. 1 Relay open/close type (a contact) independent relay contact output type (FRP-0602) *Fig. 2
Operating power supply voltage	DC 9 to 31 V
Maximum current consumption	1.2A (excluding load current) 100mA or less when not receiving
antenna	1/4λ whip antenna (flexible, length 160mm)
Monitor lamp	3 red LEDs (1 for power supply confirmation, 1 for reception confirmation, 1 for output confirmation)
Dust resistance	JIS D 0207-1977 F2
Vibration resistance	When energized: JIS D 1601-1995 Type 3, Type B, Level 70 (Frequency Class 70)
Case Material	Resin (black)
External dimensions	117 (L) x 172 (W) x 47 (H) mm
weight	Approximately 350g

Figure 1 Power supply voltage output type (FRP-0601)

Figure 2 Independent relay contact output type (FRP-0602)

Receiver specifications (waterproof type)

Reception sensitivity	1.0μV or less (-107dBm or less)
Reception method	Double Superheterodyne
Malfunction prevention method	CRC error detection method, identification between devices by ID code
operation	ON/OFF momentary operation (6 channels can be operated simultaneously)
Operation Channel Output	Relay open/close type (a contact) power supply voltage output type (FRP-0601) *Fig. 3 Relay open/close type (a contact) independent relay contact output type (FRP-0602) *Fig. 4
Operating power supply voltage	DC 9 to 31 V
Maximum current consumption	1.2A (excluding load current) 100mA or less when not receiving
antenna	Built-in
Monitor lamp	2 red LEDs (1 for power supply confirmation, 1 for reception confirmation)
Dust resistance	JIS D 0207-1977 F2
water resistance	JIS D 0203-1994 S2 (Install the input/output cable pull-out surface downwards)
Vibration resistance	When energized: JIS D 1601-1995 Type 3, Type B, Level 70 (Frequency Class 100)
Case Material	Resin (black)
External dimensions	168.7 (L) x 184 (W) x 69 (H) mm
weight	Approximately 800g

Figure 1 Power supply voltage output type (FRP-0601)

Figure 2 Independent relay contact output type (FRP-0602)
