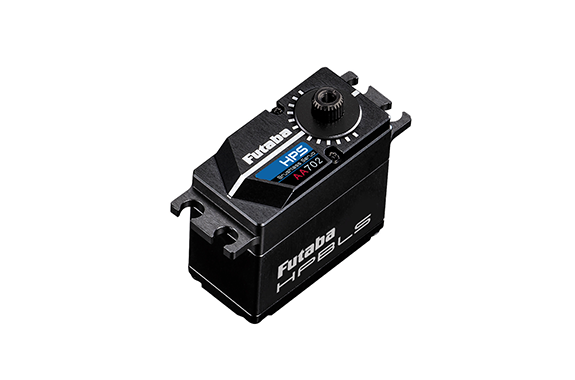

This is a HPBLS series servo for large aircraft that achieves incredible torque and low power consumption .The HPS series not only ensures amazing neutral accuracy and reliable torque. We have eliminated the trade-off between speed and power consumption,. We have achieved reliable power while saving energy. New HPS motor with high frequency control for improved response. For large aircraft (ailerons recommended).

The servo features metal 1st–3rd gears and a high-strength metal final gear for durability, along with aluminum upper, middle, and lower cases for better rigidity and cooling. It also includes an S.BUS system, a new control board, and high-frequency control for faster, smoother, and more precise performance.

Speed: 0.075 sec/60° (7.4V) / 0.08 sec/60° (6.6V)
Torque: 41 kgf・cm (7.4V) / 37 kgf・cm (6.6V)
Dimensions/Weight: 40.5 x 21.0 x 39.4 mm / 80 g

*The HPS-AA702 requires a large instantaneous current to achieve both high output and responsiveness. In the rare event of intense acrobatic flying, the power line may become unstable. For safety reasons, when connecting more than one servo with the S.BUS system, please use a receiver capacitor (16V 1800μF). For connection information, please refer to the instruction manual.
*Dry cell batteries and BEC cannot be used.
