Torque: 2.1 [kgf・cm]
Speed: 0.19 [s/60°]
Weight: 12 [g]

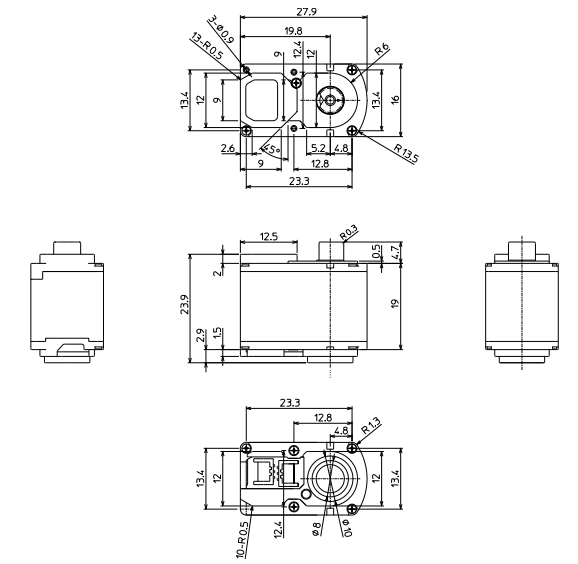

Dimensions: 27.9 x 16.0 x 23.9 mm
Power supply voltage: 5.0 [V] (3.7 to 6.0 [V])
Range of motion: 300 [deg]
Communication format: TTL half-duplex communication/PWM method

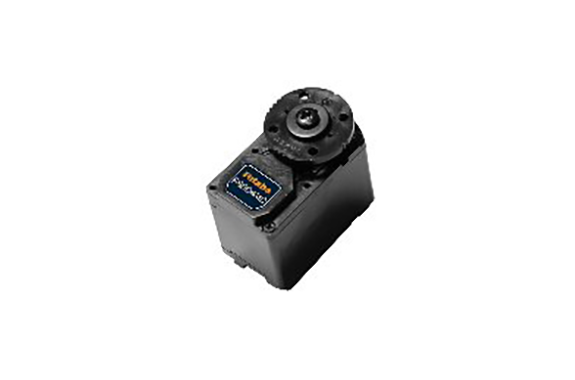

Compact and lightweight servo with resin gears

This is the smallest servo in the series, 40% smaller in volume than the RS304MD and capable of daisy-chain connection with an ADH connector. Communication is compatible with the command method/PWM method common to the RS series. It is easy to use as a small communication robot or a small actuator in the IoT field.

Option

We have prepared connecting parts that can be easily attached to the frame and can create a perpendicular two-axis joint.
By attaching a free horn, a biaxial support structure is also possible.

• Mounting bracket set

　BS3468 BRACKET SET RS204MD: Bracket mounting set
　　　　　(6 brackets, 20 1.2mm tapping screws, 20 1.2mm washers, 20 2×8 tapping screws)

• Terminal box related

　BS3476 TERMINAL BOARD TB41AD: For TTL command servos, ADH terminal relay board (4 terminals)
　BA2082 TB-RV71EH-7.4V/3W: EH terminal terminal box (7 terminals) with power switch for TTL command servos
　BC0079 TB-RV71EH POWER CABLE: Power supply cable with connector for TB-RV71EH
　BS3308 TB-EH41EH-300: For TTL command servos, EH terminal terminal box (4 terminals)
　BB0132 TB22PP: Servo connector terminal box (4 terminals)

• Connector-attached cable

　BB1182 SERVO CABLE AD-RC B 150: Servo connector conversion cable 150mm
　BB1183 SERVO CABLE AD-RC B 300: Servo connector conversion cable 300mm
　BB1184 SERVO CABLE AD-EH B 150: EH connector conversion cable 150mm
　BB1185 SERVO CABLE AD-EH B 300: EH connector conversion cable 300mm
　BB1186 SERVO CABLE AD-AD B 70: ADH connector cable 70mm
　BB1187 SERVO CABLE AD-AD B 150: ADH connector cable 150mm
　BB1188 SERVO CABLE AD-AD B 300: ADH connector cable 300mm
　BB1189 SERVO CABLE AD-C B 300: Cable with no connector on one end, 300mm

• Mounting screws

　BS3471 TAPPING SCREW 1.2X3.5: Tapping screw, nominal diameter 1.2mm x L3.5mm (pack of 30)
　BS3472 TAPPING SCREW 1.2X5: Tapping screw, nominal diameter 1.2mm x L5mm (pack of 30)
　BS3473 TAPPING SCREW 1.2X6: Tapping screw, nominal diameter 1.2mm x L6mm (pack of 30)
　BS3474 TAPPING SCREW 1.2X8: Tapping screw, nominal diameter 1.2mm x L8mm (pack of 30)
　BS3475 PLANE WASHER 1.2X2.8: Flat washer for 1.2mm tapping screws

• Repair parts

　BS3470 CASE SET RS204MD: Case repair parts, includes upper, middle, and bottom cases.
　BS3469 GEAR SET RS204MD: Gear repair parts, includes gears, shafts, and bearings.
　BS3477 GREASE MULTIPURPOSE: Contains 8g of general-purpose grease. Approximately 0.05g is the appropriate amount for one RS204MD gearbox.

• Servo horn related parts

　BS0532 RS302_304 SCREW 2×8, horn fixing screws for RS302CD/RS304MD/RS204MD (pack of 10)
　BS3354 ROBOT SERVO HORN RH01: Servo horn for RS3xx/RS2xx series (pack of 5)
　BS0168 RS30x FREE HORN SET: Free horn for RS3xx/RS2xx series (pack of 5)

• Servo horn for RS2xx/RS3xx series
• It is also possible to install servo horns for Futaba radio control servos, A type to K type, and RS3xx series servo horns.

*Please refer to the instruction manual for details.
