Futaba
Futaba S-C401 Car Servo
Manufacturer: Futaba Corporation
Model: S-C401
1/10 scale electric cars in general
★The S-C401 is a servo that supports “UR mode” and “SR mode.”
Features
Dimensions: 40.0 × 20.0 × 36.6 mm
Weight: 54 g
Speed: 0.09 sec / 60° (7.4 V); 0.11 sec/60° (6.6 V)
Torque: 13.8 kgf・cm (7.4 V); 11.4 kgf cm (6.6 V)
UR mode compatible
S.BUS method
Coreless motor
Metal 2-3 speed gear
Aluminum final gear
Resin case
*UR mode is available in the latest version of T10PX.
*UR mode can be used with the latest transmitter/receiver updates for T10PX and R404SBS/SBS-E.

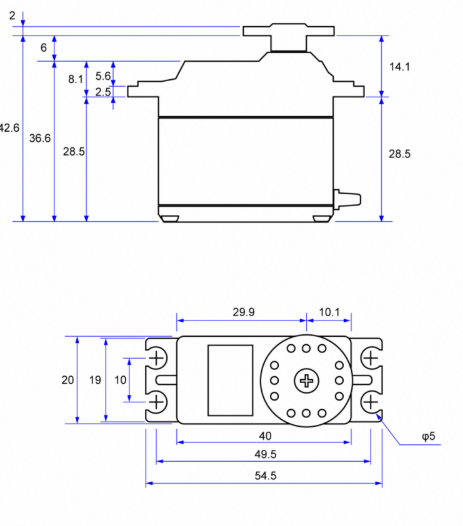

Dimension
