Manufacturer: Futaba Corporation

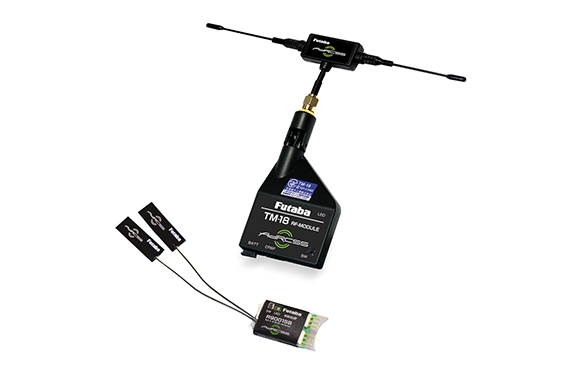

Model: TM-18 + R9001SB

920MHz module attached to transmitter

It has a backup function that switches to the 920MHz radio band if the existing radio wave becomes unusable during flight.

Features

When used alongside the 2.4GHz system, this setup enhances the safety of your flight.
The system utilizes a 920MHz band spread spectrum method.
The transmitter’s unique ID code effectively prevents interference from other AdRCSS 920MHz systems.
It includes a fail-safe function for the 3rd channel only.

Recommendation

For optimal performance, use with FDLS-1, DLPH-1, DLPH-2, or receivers equipped with a dual Rx link system, such as the R7308SB or R7208SB. We recommend using the AdRCSS 920MHz system as a backup to the 2.4GHz system.

Note: Due to the differing communication speeds between systems, slight variations in operation may occur when switching between them. These are not malfunctions.

Compatible Transmitters

T32MZ WC, T32MZ, T26SZ, T16IZ, T16IZS, *T16SZ, *T12K
(Note: The T16SZ and T12K do not provide power through the CRFS connector, so you will need a separate power supply.)

Accessories Included

TM-18 RF module
R9001SB
CRSF signal connection cable
Double-sided tape
T32MZ mounting bracket

Specifications

TM-18 RF Module

   AdRCSS 920MHz system, with a maximum of 16 channels (depending on transmitter settings)
Communication method: One-way communication (telemetry not supported)
Compatible with all Futaba 2.4GHz systems, including FASSTest 18ch/12ch, FASST MULTI/7ch, S-FHSS, T-FHS
Current consumption: 36mA (maximum)
Includes power-down mode (low output mode)

How to Use with Each Transmitter

You can use it by connecting the module to the CRSF connector on T32MZ WC, T32MZ, and T26SZ transmitters.
For the T16IZ and T12K, make sure to enable CRSF mode. Please note that in this mode, S-BUS servo setting will not be available.

Important: This product is not available for use overseas due to varying radio wave regulations in different countries.
