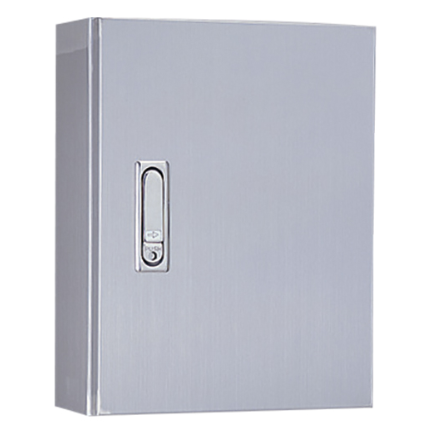

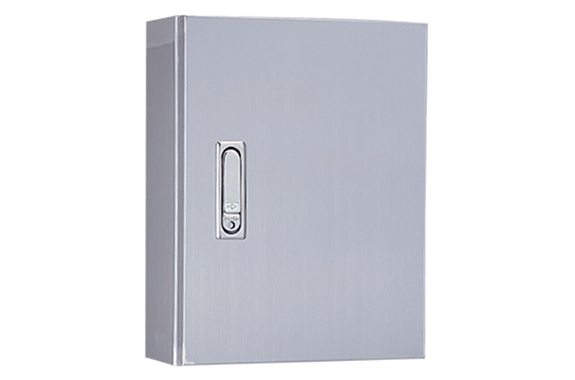

Hakaru CSA-131/135 Standard Box With Built-In LoRa Radio (Stainless Steel/Rod Antenna)
Manufacturer: HAKARU PLUS CORPORATION
Model: CSA-131/135
Product Description
Built-in LoRa radio with rod antenna
On-site installation stainless steel standard box
Circuit protector and signal terminal block included
*The box will be delivered, and the entrance will be prepared during construction.
Features
Cabinet with drainage and dustproof/waterproof gasket!
specification
CSA-131/135
| Model | CSA-131 | CSA-135 |
|---|---|---|
| External dimensions (mm) | 300W-400H-120D | 400W-400H-120D |
| Built-in adaptive LoRa radio | HLR-A1 HLR-C1 HLR-C2 HLR-RS485 HLR-A1-OUT | HLR-A4C4 HLR-A8 HLR-RPT |
| Material | Stainless steel SUS304 | Stainless steel SUS304 |
| Cabinet Thickness | Door t=1.5mm Body t=1.5mm | Door t=1.5mm Body t=1.5mm |
| Installation location | Indoor and outdoor use | Indoor and outdoor use |
| IP standard | IP54 | IP54 |
| Paint color | Hairline finish, no paint | Hairline finish, no paint |
| remarks | Comes with a key. Drainage, dustproof, and waterproof packing included. *No wiring access. | Comes with a key. Drainage, dustproof, and waterproof packing included. *No wiring access. |
| Nitto Kogyo model | SR type | SR type |
| BOX internal parts | ・Circuit protector ・LoRa radio signal terminal block | ・Circuit protector ・LoRa radio signal terminal block |
