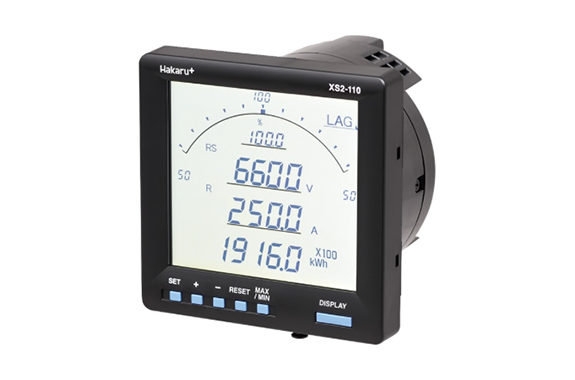

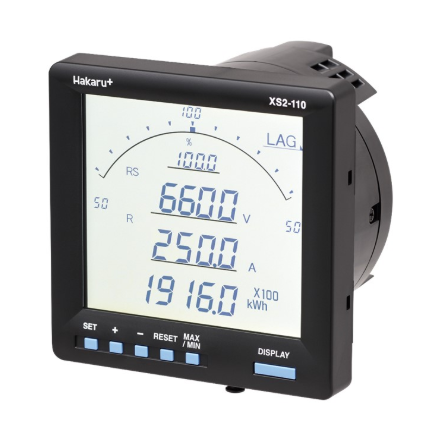

Four measurement items, including a bar graph (with digital display) and three digital displays, can be displayed simultaneously on the LCD panel.
Measurement items that were previously measured using multiple mechanical instruments can now be consolidated into one unit.
Display items can be set as desired. Display items: Current, Voltage, Power, Reactive Power, Power Factor, Energy, Reactive Energy, Frequency, Demand Current, Maximum Demand Current, Demand Power, Maximum Demand Power.
With a wide viewing angle of 75° up and down and 70° left and right, it can be installed anywhere.

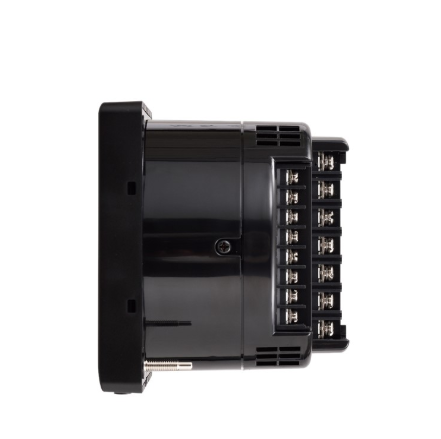

By revising the internal structure, it is now thinner and more compact, with a depth of just 80mm.
In addition to the conventional button operation settings, by utilizing the dedicated PC setting software, various parameters can be instantly set without operating the keys on the main unit, even when setting up multiple meters. In addition, the settings can be saved and read, making maintenance easier.
The LCD panel allows you to set the backlight automatic shut-off time and adjust the brightness.
The output test function allows for a simulated output signal to be sent externally, even without input, as long as there is a power supply.

• Analog output: Zero/span output operation possible
• Pulse output: Output operation possible for each pulse
• Alarm output: Alarm output ON/OFF switching operation possible
• Communication output: Transmission data output operation possible

The phase detection function makes it easy to check the voltage phase sequence and CT direction, making it ideal for sites where mechanical instruments are used.
You can choose from four backlight colors to suit your site: amber (standard), white, orange, and green.

Depending on the model, the following optional functions can be installed:

• 2 analog outputs, 1 pulse output, and 1 alarm output simultaneously installed
• RS-485 communication (proprietary protocol or Modbus/RTU)
