Hammer Caster, Japan

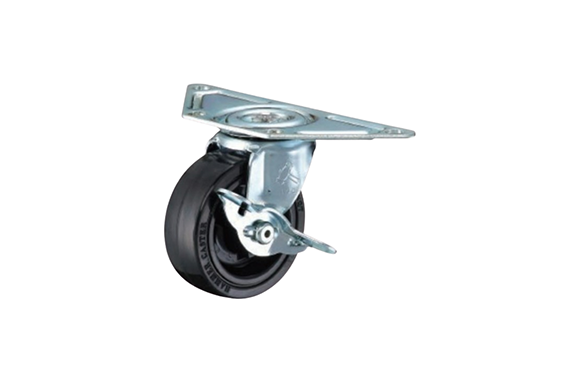

Hammer Caster 215G Stainless Steel Corner Caster
Product Made In Japan
Manufacturer: Hammer Caster
Model: 215G

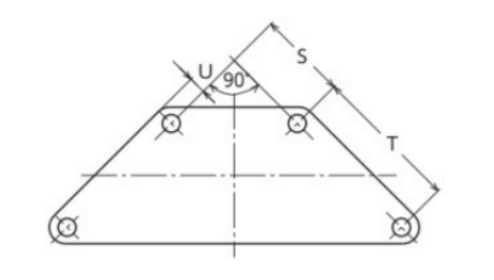

| Wheel size | S mm | T mm | U mm |
|---|---|---|---|
| 50mm | 32.5 | 53.7 | 6.5 |
| 65/75mm | 38.9 | 59.4 | 8.5 |
Product specification
| Caster type | Bracket code | Wheel size Dmm | Mounting height Hmm | Top plate AxBxCmm | Mounting pitch XxYxZmm | Mounting hole ∅ Pmm | Offset Emm | Swivel radius mm | Wheel fixing |
|---|---|---|---|---|---|---|---|---|---|
 | 220G | 50 | 66 | 135x52x50 | 122x46x38 | 6.5 | 16 | 42 | Rivet |
| 65 | 80 | 160x63x58 | 139x55x42 | 8.8 | 21 | 55 | Rivet | ||
| 75 | 90 | 160x63x58 | 139x55x42 | 8.8 | 21 | 60 | Rivet | ||
 | 215G | 50 | 66 | 135x52x50 | 122x46x38 | 6.5 | 16 | 55 | Rivet |
| 65 | 80 | 160x63x58 | 139x55x42 | 8.8 | 21 | 60 | Rivet | ||
| 75 | 90 | 160x63x58 | 139x55x42 | 8.8 | 21 | 60 | Rivet |
■ Other corner casters are 220E (P241,243) /2155 (P245).
※ C wheel caster can not be equipped with stopper.
| Product code | Load capacity | Wheels | Wheel code | Tread width mm | Ref. page | ||||
|---|---|---|---|---|---|---|---|---|---|
| Bracket code | – Wheel type | Size | Wheel number | – Type | Size | ||||
| 220 G 215 G | – R | 50 | 30 |  RubberNylon hub *Customize: conductive | P27 (Conductive wheel is solid type) | 425 G | – R | 50 | 20 | 317 |
| 65 | 40 | 65 | 27 | ||||||
| 75 | 50 | 75 | 27 | ||||||
| 220 G 215 G | – N | 50 | 38 |  NylonSolid type *Customize color: grey / black *Customize: conductive | P27 | 429 G | – N | 50 | 21 | 324 |
| 65 | 55 | 65 | 25 | ||||||
| 75 | 65 | 75 | 25 | ||||||
| 220 G 215 G | – UR | 50 | 38 |  Urethane | Thermoplastic Nylon hub *Customize: antistatic | P27 | 439 G | – UR | 50 | 21 | 329 |
| 220 G 215 G | – UR | 65 | 55 |  Urethane | ThermoplasticNylon hub + Bushing *Customize: antistatic | P27 | 439 G | – UR | 65 | 27 | 329 |
| 75 | 65 | 75 | 27 | ||||||
| 220 G 215 G | – L | 50 | 30 |  Elastomer PP hub | 429 G | – L | 50 | 21 | 334 |
| 220 G 215 G | – L | 65 | 40 |  ElastomerPP hub | 429 G | – L | 65 | 27 | 334 |
| 75 | 50 | 75 | 27 | ||||||
| 220 G | – C | 50 | 40 |  Cast Iron Solid type | 426 G | – C | 50 | 21 | 336 |
| 65 | 60 | 65 | 25 | ||||||
| 75 | 70 | 75 | 25 | ||||||
| 220 G 215 G | – MC | 50 | 40 |  MC Nylon Solid type | 499 G | – MC | 50 | 20 | 337 |
| 65 | 60 | 65 | 25 | ||||||
| 75 | 70 | 75 | 25 | ||||||
