Hammer Caster, Japan

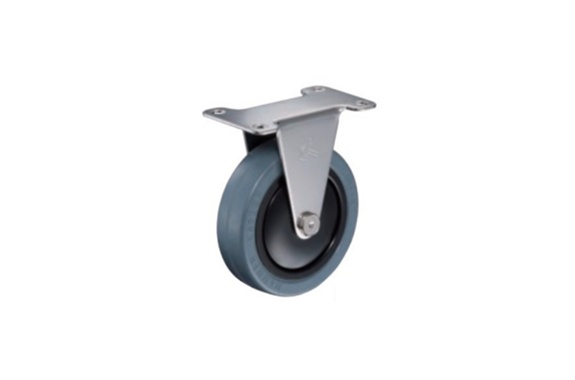

Hammer Caster 320ER Stainless Steel Caster
Product Made In Japan
Manufacturer: Hammer Caster
Model: 320ER
Product dimension
| Caster type | Bracket code | Wheel size Dmm | Mounting height Hmm | Top plate AxBmm | Mounting pitch XxYxZmm | Mounting hole ∅ Pmm | Wheel fixing |
|---|---|---|---|---|---|---|---|
 | 320 ER | 100 | 122 | 100×58 | 82×40 | 8.8 | Nut |
| 125 | 148 | 100×58 | 82×40 | 8.8 | Nut |
| Product code | Load capacity | Wheels | Wheel code | Tread width mm | ||||
|---|---|---|---|---|---|---|---|---|
| Bracket code | – Wheel type | Size | Wheel number | – Type | Size | |||
| 320 BBE 313 BBE 320 ER | – FR | 100 | 50 |  RubberNylon hub + ball bearing *For stainless steel caster | 434 SOE | – FR | 100 | 27 |
| 125 | 60 | 125 | 27 | |||||
| 320 BBE 313 BBE 320 ER | – UZ | 100 | 60 |  Urethane | thermoplasticNylon hub + ball bearing *Customize : antistatic / conductive | P 27 | 429 SOE | – UZ | 100 | 27 |
| 125 | 70 | 125 | 27 | |||||
