Manufacturer: Hirosugi Instruments Co., Ltd.

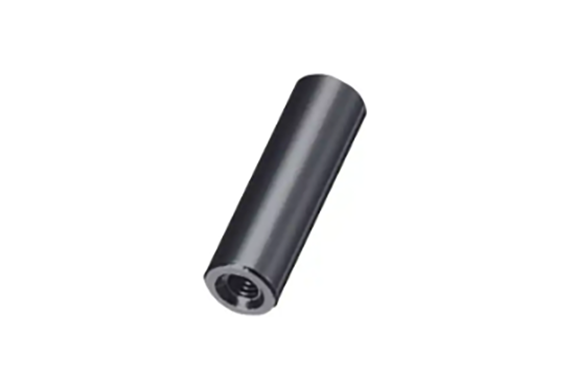

Model: ARL-1700BE

Specification

M1.7 to M2: Lead-free, free-cutting aluminum (CB156)
with a lead content of 10 ppm or less.
M2.6 to M5: Lead-free, free-cutting aluminum (KS26)
with a lead content of 300 ppm or less.

process

Black anodized aluminum (BAL)

Exterior drawings

Thread diameter (pitch)	L	Part Number	ℓ1
M1.7 (0.35)	4	ARL-1704BE	Fully threaded
	4.5	ARL-1704.5BE
	5	ARL-1705BE
	5.5	ARL-1705.5BE
	6	ARL-1706BE
	6.5	ARL-1706.5BE
	7	ARL-1707BE
	7.5	ARL-1707.5BE
	8	ARL-1708BE
	8.5	ARL-1708.5BE
	9	ARL-1709BE
	9.5	ARL-1709.5BE
	10	ARL-1710BE
	11	ARL-1711BE	5
	12	ARL-1712BE	5
	12.5	ARL-1712.5BE	5
	13	ARL-1713BE	5
	14	ARL-1714BE	5
	15	ARL-1715BE	5
	16	ARL-1716BE	5
	16.5	ARL-1716.5BE	5
	17	ARL-1717BE	5
	17.5	ARL-1717.5BE	5
	18	ARL-1718BE	5
	19	ARL-1719BE	5
	20	ARL-1720BE	5
	twenty one	ARL-1721BE	5
	twenty two	ARL-1722BE	5
	twenty three	ARL-1723BE	5
	twenty four	ARL-1724BE	5
	twenty five	ARL-1725BE	5
	26	ARL-1726BE	5
	27	ARL-1727BE	5
	28	ARL-1728BE	5
	29	ARL-1729BE	5
	30	ARL-1730BE	5
